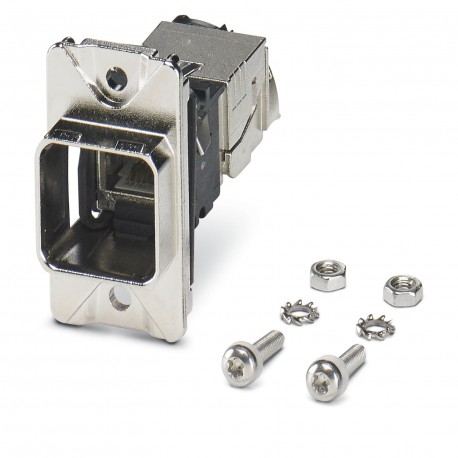

CUC-V14-F1ZNI-EM/R4F8 1413961 PHOENIX CONTACT Panel mounting frames
CUC-V14-F1ZNI-EM/R4F8
1413961
PHOENIX CONTACT
1 Pcs.
Panel mounting frames
RJ45 recessed frame, IP67, for push-pull locking, metal, for rectangular mounting section, with seal and fixing screws, incl. RJ45 module with IDC cable connection
RJ45 panel mounting frame, IP67, for push-pull interlocking, metal, for rectangular mounting cutout, with seal and mounting screws, incl. RJ45 insert with IDC cable connection
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
Product properties
| Product type | Panel-mount frame |
| Type | RJ45 |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Number of slots | 1 |
| Type | RJ45 |
| Data management status | |
| Article revision | 05 |
| Insulation characteristics | |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (III/3) | 72 V (DC) |
| Rated surge voltage | 1 kV |
| Operating voltage | 72 V (DC) |
| Frequency range | 500 MHz |
| Insulation resistance | > 500 MΩ (100 V DC) |
| Transmission medium | Copper |
Connection data
| Connection technology | |
| Connection method | IDC connection |
Dimensions
| Width | 22.2 mm |
| Height | 42 mm |
| Length | 51 mm |
Material specifications
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Seal material, pin connector pattern | NBR |
| Housing material | Metal |
| Housing surface material | nickel-plated |
| Material, protective cover | PC |
Cable/line
| Shielded | yes |
| External cable diameter | 4.5 mm ... 9 mm |
| Wire diameter | 0.4 mm ... 0.65 mm |
| Wire diameter including insulation | 0.8 mm ... 1.6 mm |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 750 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | -10 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 22.2 mm |
| Height (EF000040) | 42 mm |
| Depth (EF000049) | 51 mm |
