View larger
Images are for illustrative purposes only. Please refer to data sheet for details

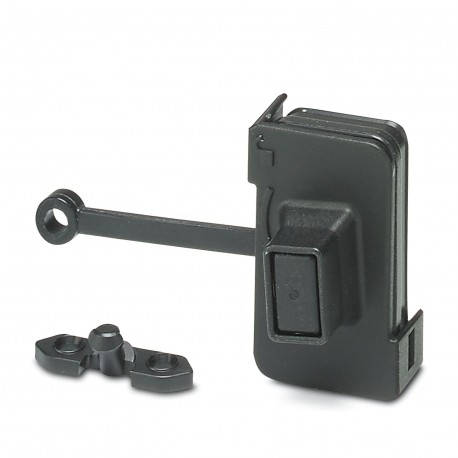

CUC-PPC-A2RBK-PC 1424989 PHOENIX CONTACT Protective covers CUC-PPC-A2RBK-PC 1424989
CUC-PPC-A2RBK-PC
1424989
PHOENIX CONTACT
1 Pcs.
Protective covers - CUC-PPC-A2RBK-PC - 1424989
Protective cap, protection rating: IP65
Protective cover, degree of protection: IP65, number of positions: 2
Connectors > Cap for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data plug |
| Number of positions | 2 |
| Data management status | |
| Article revision | 03 |
| Insulation characteristics | |
| Overvoltage category | I |
| Degree of pollution | 2 |
Dimensions
| Width | 22 mm |
| Height | 55.7 mm |
| Depth | 21 mm |
| Length | 34 mm |
Material specifications
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| NBR | |
| Locking latch material | PA |
Cable/line
| External cable diameter | 4.5 mm ... 8 mm |
| Cable cross section | 0.14 mm² |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Feature Name | Feature Value |
|---|---|
| Type of locking (EF000208) | Push Pull |
| With sealing (EF005610) | No |
| With captivity element (EF012222) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
