View larger
Images are for illustrative purposes only. Please refer to data sheet for details

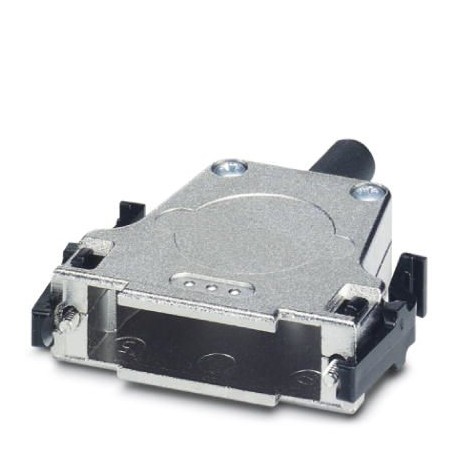

CUC-DST-GZNI-S/DSFL25 1419758 PHOENIX CONTACT D-SUB sleeve housings
CUC-DST-GZNI-S/DSFL25
1419758
PHOENIX CONTACT
1 Pcs.
D-SUB sleeve housings
D-SUB bobbin housing, protection index: IP20, material: Zinc injected casting, cable outlet: straight, housing size: 3, color: Metallic, bare
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1419758 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626188171 |
| Weight per Piece (excluding packing) | 72.900 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| External cable diameter | 3 mm ... 8.5 mm (Without bending protection) |
|---|---|
| Cable outlet | straight |
| Color | Bare metallic |
| Mounting type | Fast locking system |
| Degree of protection | IP20 |
| Type | D-SUB 25 |
| Size of housing | 3 |
| No. of cable outlets | 1 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Zinc die-cast |
| Housing surface material | Nickel-plated |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
