View larger
Images are for illustrative purposes only. Please refer to data sheet for details

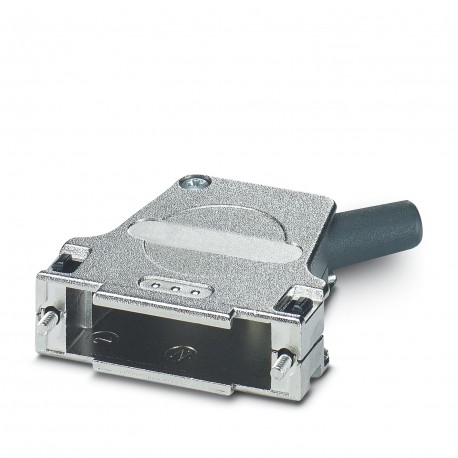

CUC-DST-GZNI-A/DSSC25 1419728 PHOENIX CONTACT D-SUB sleeve housings
CUC-DST-GZNI-A/DSSC25
1419728
PHOENIX CONTACT
1 Pcs.
D-SUB sleeve housings
D-SUB bobbin housing, protection index: IP20, material: Zinc injected casting, cable outlet: elbowed, housing size: 3, color: Metallic, bare
D-SUB sleeve housings, degree of protection: IP20, material: Zinc die-cast, cable outlet: angled, housing size: 3, color: Bare metallic
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Sleeve housings |
| Type | D-SUB |
| No. of cable outlets | 1 |
| Cable outlet | angled |
| Data management status | |
| Article revision | 00 |
Connection data
| Screw thread | 4-40 UNC |
Dimensions
| Width | 53.7 mm |
| Height | 15.2 mm |
| Depth | 61.3 mm |
Material specifications
| Color | Bare metallic |
| Flammability rating according to UL 94 | V0 |
| Housing material | Zinc die-cast |
| Housing surface material | nickel-plated |
Cable/line
| External cable diameter | 3 mm ... 8.5 mm (Without bending protection) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -35 °C ... 100 °C |
Mounting
| Mounting type | Screw locking mechanism |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 53.7 mm |
| Height (EF000040) | 15.2 mm |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Number of conduit inlets (EF000437) | 1 |
| Operating temperature (EF002393) | -35 °C |
| EMC-version (EF001062) | Yes |
