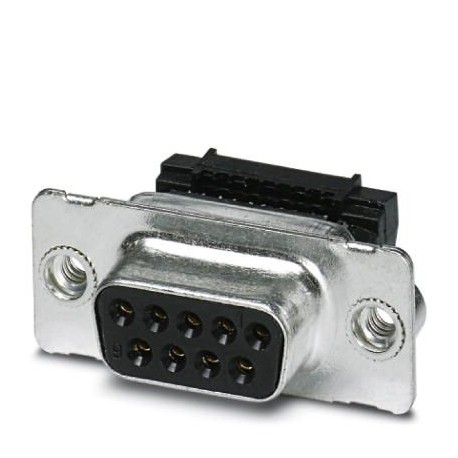

PHOENIX CONTACT CUC-DSI-J1STZ-S/DSRCB9 CUC-DSI-J1STZ-S/DSRCB9 1418742 PHOENIX CONTACT D-SUB contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CUC-DSI-J1STZ-S/DSRCB9 1418742 PHOENIX CONTACT D-SUB contact insert

CUC-DSI-J1STZ-S/DSRCB9

1418742

PHOENIX CONTACT

10 Pcs.

D-SUB contact insert D-SUB contact insert, protection index: IP20, number of poles: 9, material: Steel, tin-plated, connection type: Connection for flat cable, housing size: 1

Connectors > D-Sub connector
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1418742
Packing unit10 pc
Minimum order quantity10 pc
NoteMade to Order (non-returnable)
GTIN4055626150086
Weight per Piece (excluding packing)12.740 g
Custom tariff number85366990
Country of originDE (Germany)

Mechanical characteristics

Standards/specificationsDIN 41652
Number of positions9
Connection profileD-SUB 9
Insertion/withdrawal cycles>= 200
Connection methodFlat-ribbon cable connection
Mounting type4-40 UNC thread
Type09
Size of housing1

Ambient conditions

Ambient temperature (operation)-55 °C ... 125 °C

Material data

Flammability rating according to UL 94V0
Housing materialSteel, tin-plated
Contact carrier materialPolyester GF
Contact materialCopper alloy
Contact surface material0.2 µm, gold over nickel

Electrical characteristics

Number of positions9
Rated current1.5 A

Standards and Regulations

Standards/regulationsDIN 41652
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
