View larger
Images are for illustrative purposes only. Please refer to data sheet for details

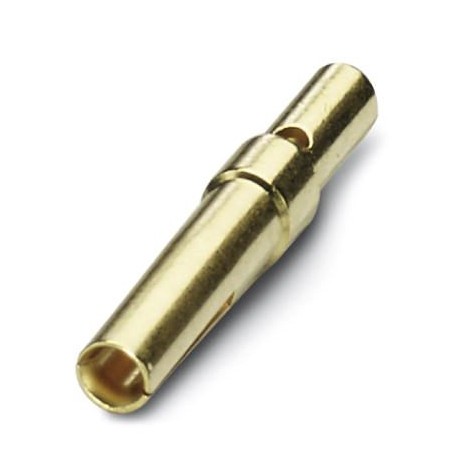

CUC-DSC-J1BAU-S/DSC24 1418788 PHOENIX CONTACT D-SUB crimp contact
CUC-DSC-J1BAU-S/DSC24
1418788
PHOENIX CONTACT
100 Pcs.
D-SUB crimp contact
D-SUB crimped contact, connection type: Crimped connection, connection cross-section: AWG 24- 20
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1418788 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 446 (C-2-2017) |
| GTIN | 4055626150758 |
| Weight per Piece (excluding packing) | 0.230 g |
| Custom tariff number | 85366990 |
| Country of origin | CH (Switzerland) |
Mechanical characteristics
| Standards/specifications | DIN 41652 |
|---|---|
| Insertion/withdrawal cycles | ≥ 200 |
| Connection method | Crimp connection |
| Type of contact | Socket |
| Conductor cross section | 0.2 mm² ... 0.5 mm² |
| Connection cross section AWG | 24 ... 20 |
| Insertion force per signal contact | ≤ 3.40 N |
| Mounting type | Crimp connection |
| Contact type | turned |
| Note | Test voltage only in combination with contact insert, order number: 1688861. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Bus |
| Ambient temperature (EF002386) | 130 °C |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material contact (EF007544) | Copper |
| Min. number of insertion cycles (EF012212) | 200 |
