View larger
Images are for illustrative purposes only. Please refer to data sheet for details

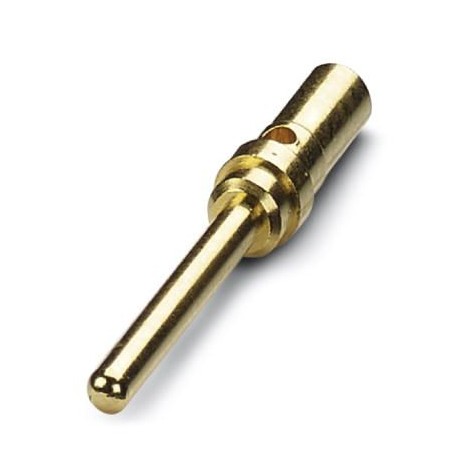

CUC-DSC-C1BAU-S/DSC28 1418784 PHOENIX CONTACT D-SUB crimp contact
CUC-DSC-C1BAU-S/DSC28
1418784
PHOENIX CONTACT
100 Pcs.
D-SUB crimp contact
D-SUB crimped contact, connection type: Crimp connection, connection cross-section: AWG 28- 24
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1418784 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 446 (C-2-2017) |
| GTIN | 4055626150727 |
| Weight per Piece (excluding packing) | 0.170 g |
| Custom tariff number | 85366990 |
| Country of origin | CH (Switzerland) |
Mechanical characteristics
| Standards/specifications | DIN 41652 |
|---|---|
| Insertion/withdrawal cycles | ≥ 200 |
| Connection method | Crimp connection |
| Type of contact | Pin |
| Conductor cross section | 0.08 mm² ... 0.12 mm² |
| Connection cross section AWG | 28 ... 26 |
| Insertion force per signal contact | ≤ 3.40 N |
| Mounting type | Crimp connection |
| Contact type | turned |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 130 °C |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material contact (EF007544) | Copper |
| Min. number of insertion cycles (EF012212) | 200 |
