View larger
Images are for illustrative purposes only. Please refer to data sheet for details

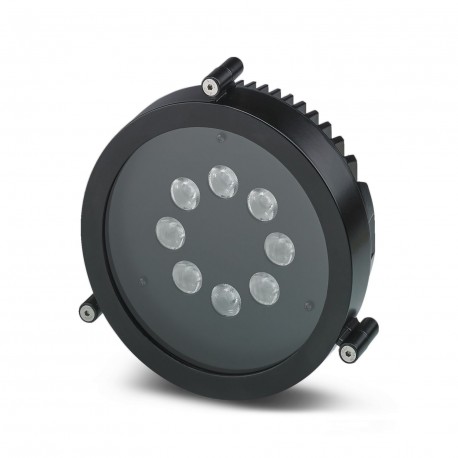

CSD-SL 200 RD 2701784 PHOENIX CONTACT LED signal light, 24 V DC, red, communication interface
CSD-SL 200 RD
2701784
PHOENIX CONTACT
1 Pcs.
LED signal light, 24 V DC, red, communication interface
Signal light, 24 VDC, IALA red Optimum, diameter: 174 mm, protection index: IP65/IP67, Communication interface
Signal light, 24 V DC, IALA red, optimum, emission angle (vertical/Horizontal): 10.5 °/4.5 °, diameter: 174 mm, degree of protection: IP65/IP67, Communication interface
Automation > Accessories/spare parts for optic and acoustic signalling equipment
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product type | Signaling light |
| Application | Inland navigation |
| Transportation infrastructure | |
| Mounting position | vertical |
| Design | Operating hours counter |
| Special properties | Communication interface |
| Diagnostics messages | LEDs; temperature, current, voltage, etc. yes |
| Mains failure, communication failure yes | |
| Light color | IALA red, optimum |
Electrical properties
| General | |
| Inrush current | max. 12 A (µ-sec-pulse) |
| Supply: Module electronics | |
| Connection method | M12 connector |
| Number of positions | 8 |
| Supply voltage | 24 V DC (DC) |
| Supply voltage range | 19.2 V DC ... 30 V DC (DC) |
| Current consumption | max. 450 mA (red LEDs) |
| Power consumption | typ. 9 W (red LEDs) |
Connection data
| Connection method | M12 connector |
| Note on the connection method | Hybrid 8-pos. Y-coded for power and data |
Signaling
| Light properties | |
| Source of light type | LED |
| Number of LEDs | 8 (in accordance with IALA recommendation E200-1 and CIE 1931) |
| Light color | IALA red, optimum |
| Color spectrum | 620 nm ... 645 nm |
| Color class | C2 (EN 12966) |
| Luminance | L3 (EN 12966) |
| Luminance ratio | R3 (EN 12966) |
| Phantom light class | 5 (EN 12368) |
| Luminous intensity | 3200 Cd |
| Can be dimmed | Yes, in 256 steps |
| Emission angle | 10.5 ° |
| 4.5 ° | |
| Diagnostic messages | |
| Diagnostics | LEDs; temperature, current, voltage, etc. |
| Message | yes |
| Diagnostic messages | |
| Diagnostics | Mains failure, communication failure |
| Message | yes |
Dimensions
| Depth | 66 mm |
| Diameter | 174 mm |
Material specifications
| Color | black (RAL 9005) |
| Material | Aluminum die-cast in accordance with DIN EN 1706 |
| Glass |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP65/IP67 (When installed) |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Mounting
| Mounting type | Screw mounting |
| Mounting position | vertical |
