View larger
Images are for illustrative purposes only. Please refer to data sheet for details

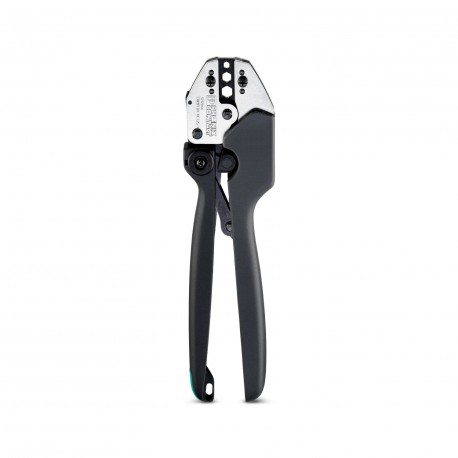

CRIMPFOX-RCT 25-1 1212066 PHOENIX CONTACT Crimping pliers
CRIMPFOX-RCT 25-1
1212066
PHOENIX CONTACT
1 Pcs.
Crimping pliers
Crimping clamp for cable lugs in non-insulated CU tube (DIN 46235), 10 mm² ... 25 mm², HEX crimp
Crimping tool for non-insulated CU tubular lugs (DIN 46235), 10 mm2 ... 25 mm2, HEX crimping
Cables > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212066 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 432 (C-3-2017) |
| GTIN | 4046356454063 |
| Weight per Piece (excluding packing) | 661.600 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Color | black |
|---|---|
| Compression | HEX crimp |
| Type of contact | CU conduit lugs |
| Designation | Crimping position 1 |
| Max. cross section | 10 mm² |
| AWG max | 8 |
| Outside diameter | 7.00 mm |
| Internal diameter | 4.50 mm |
| Designation | Crimping position 2 |
| Max. cross section | 16 mm² |
| AWG max | 6 |
| Outside diameter | 8.50 mm |
| Internal diameter | 5.50 mm |
| Designation | Crimping position 3 |
| Max. cross section | 25 mm² |
| AWG max | 4 |
| Outside diameter | 10.00 mm |
| Internal diameter | 7.00 mm |
| Weight | 578 g |
| Min. cross section | 10 mm² |
| Max. cross section | 25 mm² |
| AWG min | 7 |
| AWG max | 2/0 |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
eCl@ss 10.0.121043811eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043800eCl@ss 7.021043811eCl@ss 8.021043811eCl@ss 9.021043811
| Feature Name | Feature Value |
|---|---|
| Cross section (EF003929) | 10 mm² |
| Length (EF001438) | 256 mm |
| With locking device (for mechanical tools) (EF001817) | Yes |
