View larger
Images are for illustrative purposes only. Please refer to data sheet for details

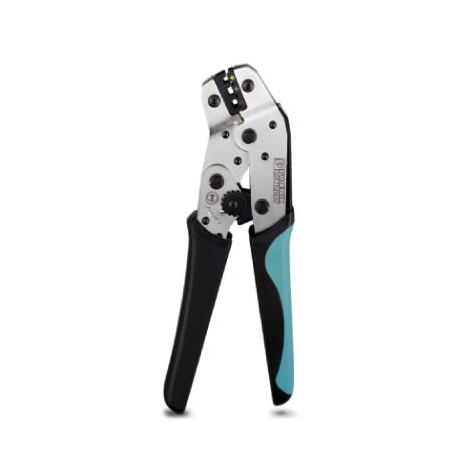

CRIMPFOX-RCI 1 1212055 PHOENIX CONTACT Crimping pliers
CRIMPFOX-RCI 1
1212055
PHOENIX CONTACT
1 Pcs.
Crimping pliers
Crushing pliers, for insulated cable terminals, 0.14 ... 1.0 mm² (light green, red), oval setting
Cables > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212055 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 428 (C-3-2017) |
| GTIN | 4046356453851 |
| Weight per Piece (excluding packing) | 436.600 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Color | black |
|---|---|
| Compression | Oval crimp |
| Type of contact | Insulated cable lugs |
| Designation | Crimping position 1 |
| Min. cross section | 0.14 mm² |
| Max. cross section | 0.25 mm² |
| AWG min | 26 |
| AWG max | 24 |
| Designation | Crimping position 2 |
| Min. cross section | 0.25 mm² |
| Max. cross section | 0.5 mm² |
| AWG min | 24 |
| AWG max | 22 |
| Designation | Crimping position 3 |
| Min. cross section | 0.5 mm² |
| Max. cross section | 1 mm² |
| AWG min | 22 |
| AWG max | 18 |
| Weight | 358 g |
| Min. cross section | 0.14 mm² |
| Max. cross section | 1 mm² |
| AWG min | 26 |
| AWG max | 18 |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
eCl@ss 10.0.121043811eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043800eCl@ss 7.021043811eCl@ss 8.021043811eCl@ss 9.021043811
| Feature Name | Feature Value |
|---|---|
| Cross section (EF003929) | 0.14 mm² |
| Length (EF001438) | 198 mm |
| With locking device (for mechanical tools) (EF001817) | Yes |
