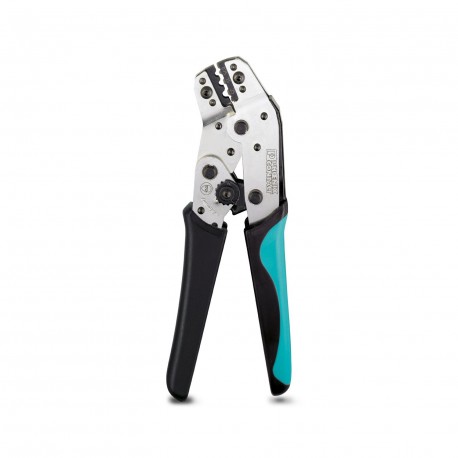

PHOENIX CONTACT CRIMPFOX-RC 2,5 CRIMPFOX-RC 2,5 1212063 PHOENIX CONTACT Crimping pliers View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CRIMPFOX-RC 2,5 1212063 PHOENIX CONTACT Crimping pliers

CRIMPFOX-RC 2,5

1212063

PHOENIX CONTACT

1 Pcs.

Crimping pliers Crimping pliers, for uninsulated cable terminals, 0.34 ... 2.5 mm², Indent setting Crimping pliers, for uninsulated cable lugs, 0.34 ... 2.5 mm2, indent crimp

Cables > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Environmental Product Compliance
California Proposition 65Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration
Product properties
Product typeCrimping tool
CompressionIndent crimp
Crimping position 1
Min. cross section0.34 mm²
Max. cross section0.75 mm²
AWG min22
AWG max20
Crimping position 2
Min. cross section0.75 mm²
Max. cross section1.5 mm²
AWG min14
AWG max16
Crimping position 3
Min. cross section1.5 mm²
Max. cross section2.5 mm²
AWG min16
AWG max14
Connection data
Conductor connection
Cross section range, metric0.34 mm² ... 2.5 mm²
Cross section range AWG22 ... 14
Dimensions
Width18 mm
Height59 mm
Length198 mm
Material specifications
Colorblack
