PHOENIX CONTACT CRIMPFOX DUO 10 SET CRIMPFOX DUO 10 SET 1044971 PHOENIX CONTACT Tool bag, equipped

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

CRIMPFOX DUO 10 SET 1044971 PHOENIX CONTACT Tool bag, equipped

Name: CRIMPFOX DUO 10 SET 1044971 PHOENIX CONTACT Tool bag, equipped
Brand: PHOENIX CONTACT
SKU: 1044971

Reference: CRIMPFOX DUO 10 SET

Code: 1044971

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

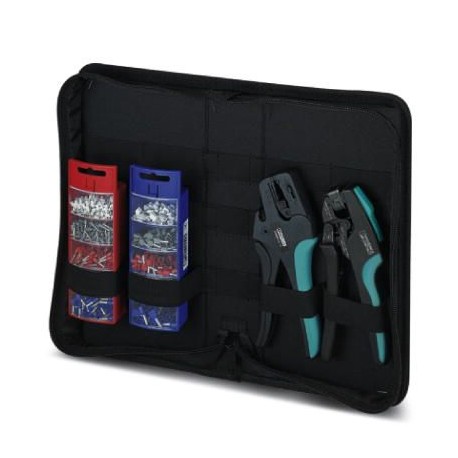

Tool bag, equipped Cutting, stripping and crimping set, packed in a tool case, consisting of: WIREFOX 10, CRIMPFOX DUO 10, AI SORTI BOX RD, AI TWIN SORTI BOX BU, TOOL-KIT STANDARD EMPTY

Categories:
Tools > Tool set
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1044971
Packing unit	1 pc
GTIN	4055626622859
Weight per Piece (excluding packing)	1,056.100 g
Custom tariff number	82060000
Country of origin	SE (Sweden)

General

Color	black

Environmental Product Compliance

California Proposition 65	Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration

Articles in set

Crimping pliers, type of contact: Insulated and uninsulated ferrules, standards/specifications: DIN 46228-1, DIN 46228-4, min. cross section: 0.14 mm², max. cross section: 10 mm², for TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, rotating die, lateral and frontal insertion, compression: Trapezoidal crimp, black

Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjusting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade

Assortment box, supplied with ferrules according to DIN 46228-4: 1990-09, 50 pcs. of each. AI 0,5-8 WH, AI 2,5-8 BU, 100 pcs. AI 0,75-8 GY, AI 1-8 RD, AI 1,5-8 BK

Assortment box, supplied with TWIN ferrules according to DIN 46228-4, CSA-certified, box contains 50 pcs. AI-TWIN 2x0,5-8 WH, AI-TWIN 2x0,75-8 GY, AI-TWIN 2x1-8 RD, AI-TWIN 2x1,5-8 BK, 25 pcs. AI-TWIN 2x2,5-10 BU

Tool box, unequipped

Classifications

eCl@ss 7.021045003eCl@ss 9.021045003

ETIM 5.0EC000149ETIM 6.0EC000149

ETIM for 1044971 Hand tools (EC000149)
Feature Name	Feature Value
Number of crosshead screwdrivers Phillips PH (EF006373)	0
Number of crosshead screwdrivers Pozidriv PZ (EF006374)	0
Number of slotted screwdrivers (EF006379)	0
Number of socket spanners (EF006381)	0
Number of files (EF006637)	0
Number of measuring tools (EF007626)	0
Total number of tools (EF006386)	2
Packaging (EF000160)	Bag
