View larger
Images are for illustrative purposes only. Please refer to data sheet for details

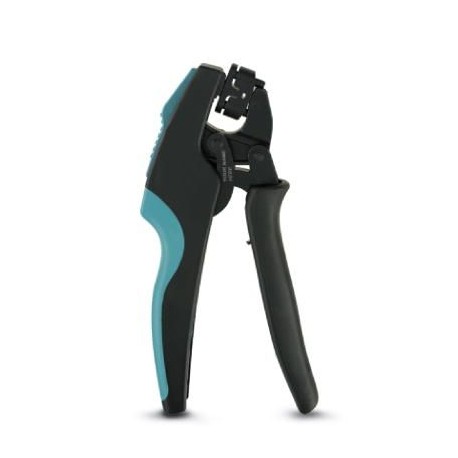

CRIMPFOX DUO 10 CUS 1044970 PHOENIX CONTACT Crimping pliers
CRIMPFOX DUO 10 CUS
1044970
PHOENIX CONTACT
1 Pcs.
Crimping pliers
Crimping pliers, with laser marking according to customer specifications, contact type: insulated and non-insulated ferrules, standards/arrangements: DIN 46228-1, DIN 46228-4, min. cross-section: 0.14 mm², max. cross-section: 10 mm², for TWIN ferrules up to 2 x 4 mm², automatic cross-sectional adaptation, rotating die, side and front insertion, pressing: Trapezoidal crimping, black
Cables > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1044970 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626633466 |
| Weight per Piece (excluding packing) | 352.200 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Color | black |
|---|---|
| Compression | Trapezoidal crimp |
| Type of contact | Insulated and uninsulated ferrules |
| Designation | Crimping position 1 |
| Min. cross section | 0.14 mm² |
| Max. cross section | 10 mm² |
| AWG min | 26 |
| AWG max | 8 |
| Weight | 305 g |
| Min. cross section | 0.14 mm² |
| Max. cross section | 10 mm² |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
