View larger
Images are for illustrative purposes only. Please refer to data sheet for details

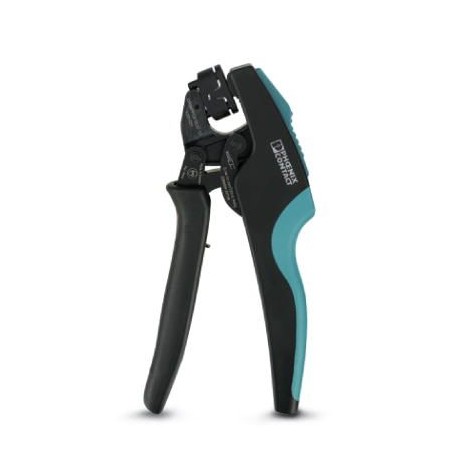

CRIMPFOX DUO 10 1031721 PHOENIX CONTACT Crimping pliers
CRIMPFOX DUO 10
1031721
PHOENIX CONTACT
1 Pcs.
Crimping pliers
Crimping pliers, contact type: insulated and non-insulated ferrules, min cross-section: 0.14 mm², max. cross-section: 10 mm², for TWIN ferrules up to 2 x 4 mm², automatic cross-sectional adaptation, swivel die, side and front insertion, pressing: Trapezoidal crimp, black/green
Cables > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1031721 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626535371 |
| Weight per Piece (excluding packing) | 351.500 g |
| Custom tariff number | 82032000 |
| Country of origin | SE (Sweden) |
General
| Color | black |
|---|---|
| Compression | Trapezoidal crimp |
| Type of contact | Insulated and uninsulated ferrules |
| Designation | Crimping position 1 |
| Min. cross section | 0.14 mm² |
| Max. cross section | 10 mm² |
| AWG min | 26 |
| AWG max | 8 |
| Weight | 305 g |
| Min. cross section | 0.14 mm² |
| Max. cross section | 10 mm² |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
| Feature Name | Feature Value |
|---|---|
| Cross section (EF003929) | 0.14 mm² |
| Length (EF001438) | 180 mm |
| With locking device (for mechanical tools) (EF001817) | Yes |
