View larger
Images are for illustrative purposes only. Please refer to data sheet for details

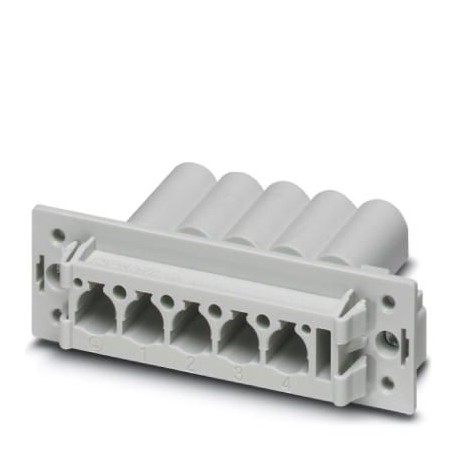

VC-AMC 5 1583878 PHOENIX CONTACT Contact carriers
VC-AMC 5
1583878
PHOENIX CONTACT
5 Pcs.
Contact carriers
Contact support, Family of items: VARIOCON, construction: VC3, housing material: PA 6.6, color: light gray, number of poles: 5, nominal voltage: 690, assigned current: 70 A, Connection type: Crimp connection, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.
Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1583878 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 28 (C-2-2013) |
| GTIN | 4046356569637 |
| Weight per Piece (excluding packing) | 27.840 g |
| Custom tariff number | 85472000 |
| Country of origin | PL (Poland) |
General
| Note | Connectors may only be connected/disconnected when under no load. |
|---|---|
| Connection technology | Crimp connection |
| Connection method | Crimp connection |
| Degree of pollution | 3 |
| Number of positions | 4+PE |
| Insertion/withdrawal cycles | ≥ 50 |
| Size | VC3 |
| Conductor cross section AWG min. | 12 |
| Conductor cross section AWG max. | 6 |
| Conductor cross section | 4 mm² ... 16 mm² |
Material data
| Housing material | PA 6.6 |
|---|---|
| Contact material | CuZn |
| Contact surface material | hard-silver plated |
| Contact carrier material | PA |
Standards and Regulations
| Halogen-free | yes |
|---|---|
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440202eCl@ss 8.027440202eCl@ss 9.027440202
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 81.3 mm |
| Height (EF000040) | 47.36 mm |
| Depth (EF000049) | 26 mm |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Other |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
