View larger
Images are for illustrative purposes only. Please refer to data sheet for details

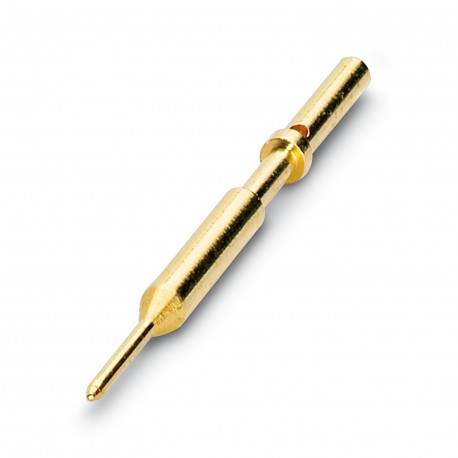

ST-06KP010 1607577 PHOENIX CONTACT Crimp contact
ST-06KP010
1607577
PHOENIX CONTACT
100 Pcs.
Crimp contact
Crimp contact, Tap, machined, contact diameter: 0.6 mm, crimping range: 0.06 mm² ... 0.25 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1242311
Crimp contact, pin, turned, contact diameter: 0.6 mm, crimp area: 0.06 mm2 ... 0.25 mm2, alternative product according to RoHS II without exception 6c (Pb < 0.1 %) Item no.: 1242311
Connectors > Contact for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1607577 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 71 (C-2-2017) |
| GTIN | 4046356272933 |
| Weight per Piece (excluding packing) | 0.220 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Contact type | turned |
|---|---|
| Contact diameter | 0.6 mm |
| Type of contact | Pin |
| Connection method | Crimp connection |
| Insertion/withdrawal cycles mechanical | 100 |
| Litz wire cross section min. | 0.06 mm² |
| Litz wire cross section max. | 0.25 mm² |
| Contact material | CuZn |
| Contact surface | Nickel-plated (Ni), with gold coating (Au) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 0.6 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 100 |
