View larger
Images are for illustrative purposes only. Please refer to data sheet for details

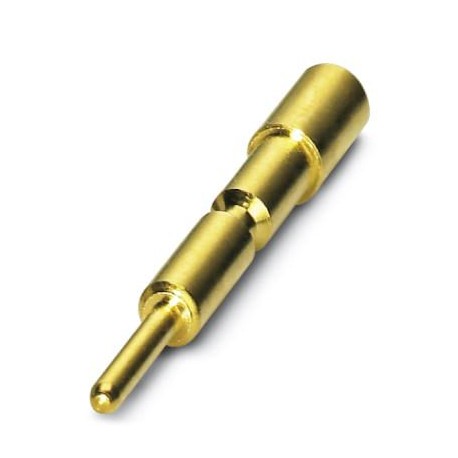

CK1,0-ED-1,0ST AU 1409082 PHOENIX CONTACT Crimp contact
CK1,0-ED-1,0ST AU
1409082
PHOENIX CONTACT
100 Pcs.
Crimp contact
Crimped contact, Article family: VARIOCON, min. conductor section: 0.14 mm², max. conductor section: 1 mm², Connection type: Crimp connection, Contact connection type: Male. for HC-MOT-AFL SET
Connectors > Contact for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1409082 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 53 (C-2-2013) |
| GTIN | 4046356619400 |
| Weight per Piece (excluding packing) | 0.300 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Conductor cross section | 0.14 mm² ... 1 mm² |
|---|---|
| Connection cross section AWG | 26 ... 18 |
| Stripping length of the individual wire | 4.5 mm |
| Contact diameter | 1 mm |
| Insertion/withdrawal cycles | ≥ 100 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607XXeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Ambient temperature (EF002386) | 125 °C |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 1 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Gold |
| Min. number of insertion cycles (EF012212) | 100 |
