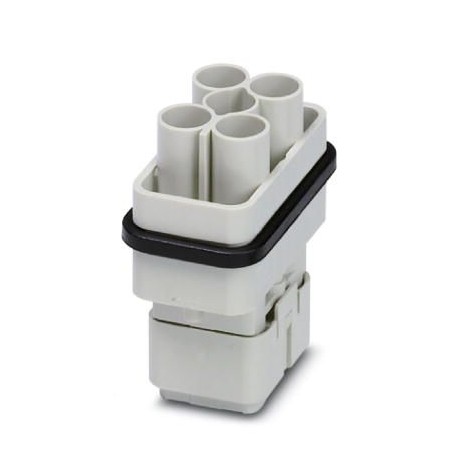

HC-COM- 4/2-ESTC 1408504 PHOENIX CONTACT Contact insert
HC-COM-4/2-ESTC
1408504
PHOENIX CONTACT
2 Pcs.
Contact insert
Contact insert, number of poles: 4+2+PE, size: COM, power contacts: 4, control contacts: 2, Male, Crimped connection, 250 V, 40 A, 0.14 mm² ... 2.5 mm², Application: Power/Signal
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1408504 |
|---|---|
| Packing unit | 2 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 649 (C-2-2017) |
| GTIN | 4046356618212 |
| Weight per Piece (excluding packing) | 21.000 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
General
| Note | For crimp contacts CK4.0-ED.. (control circuit), CK1.6-ED... (control circuit) |
|---|---|
| Connection method | Crimp connection (Signal contacts) |
| Crimp connection (power contacts) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 4+2+PE |
| No. of power contacts | 4 |
| No. of control contacts | 2 |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | COM |
| Contact numbering | 1 - 4 |
| Conductor cross section | 0.14 mm² ... 2.5 mm² (control contacts) |
| 1.5 mm² ... 6 mm² (power contacts) | |
| Connection cross section AWG | 16 ... 10 (power contacts) |
| 26 ... 14 (control contacts) | |
| Stripping length of the individual wire | 9 mm (1.5 mm² ... 2.5 mm² control circuit) |
| 9.6 mm (4 mm² - 6 mm² control circuit) | |
| 8 mm (Control circuit) | |
| 6 mm (2.5 mm² control circuit) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 100 °C (including heating up of contacts) |
|---|
Material data
| Seal material | NBR |
|---|---|
| Contact material | Copper alloy |
| Contact surface material | Ag (alternatively Au) |
| Material of contact surface, power contact | Ag |
| Material of contact surface, control contact | Ag (alternatively Au) |
| Contact carrier material | PC |
Electrical characteristics
| Rated voltage for power contacts | 400/690 V |
|---|---|
| Rated voltage (III/3) | 250 V (control contacts) |
| 400 V (Phase-ground power contacts) | |
| 690 V (Phase-phase power contacts) | |
| Rated surge voltage | 6 kV (Phase-phase power contacts) |
| 4 kV (control contacts) | |
| Rated current | 40 A (power contacts) |
| 10 A (control contacts) |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
