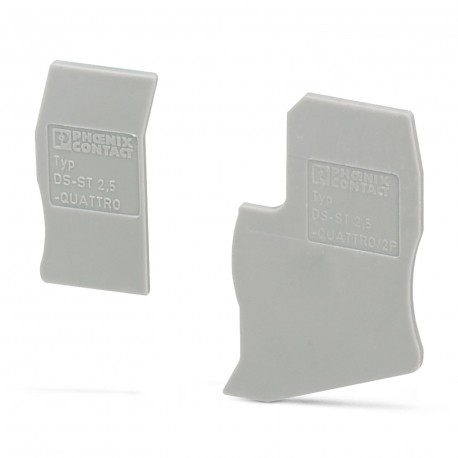

PHOENIX CONTACT DS-ST 2,5/P DS-ST 2,5/P 3041011 PHOENIX CONTACT Cover segment View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DS-ST 2,5/P 3041011 PHOENIX CONTACT Cover segment

DS-ST 2,5/P

3041011

PHOENIX CONTACT

50 Pcs.

Cover segment Segment end cap, length: 81 mm, width: 1 mm, height: 36.5 mm, colour: grey Cover segment, depth: 36.5 mm, width: 1 mm, height: 81 mm, color: gray

Automation > Endplate and partition plate for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeEnd cover
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (storage/transport)30 % ... 70 %
Material specifications
Colorgray (RAL 7042)
MaterialPA
Flammability rating according to UL 94V0
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Dimensions
Width1 mm
End cover width1 mm
Height81 mm
Depth36.5 mm
Min. material thickness1 mm
Notes
GeneralA cover segment should be used if terminal blocks with a higher number of terminal points cannot be covered by the contour of another terminal block.

ETIM for 3041011 Terminal blocks (EC000886)
Feature Name Feature Value
End plate model (EF006586) Yes
Partition model (EF006587) No
Colour (EF000007) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
