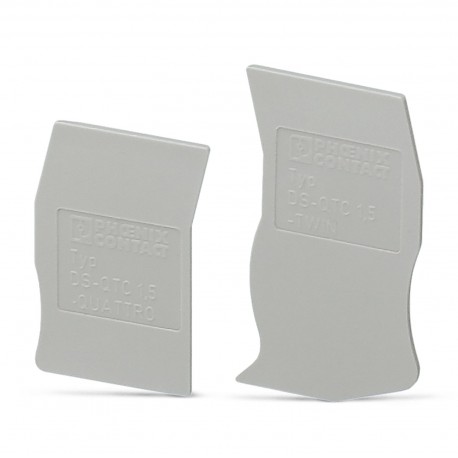

DS-QTC 1,5 3205200 PHOENIX CONTACT Cover segment
DS-QTC 1,5
3205200
PHOENIX CONTACT
50 Pcs.
Cover segment
Segment end cap, length: 94 mm, height: 39.3 mm, colour: grey
Cover segment, depth: 39.3 mm, height: 94 mm, color: gray
Automation > Endplate and partition plate for terminal block
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | End cover |
| Data management status | |
| Article revision | 01 |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C () |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Height | 94 mm |
| Depth | 39.3 mm |
| Min. material thickness | 1 mm |
Notes
| General | A cover segment should be used if terminal blocks with a higher number of terminal points cannot be covered by the contour of another terminal block. |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | Yes |
| Partition model (EF006587) | No |
| Colour (EF000007) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
