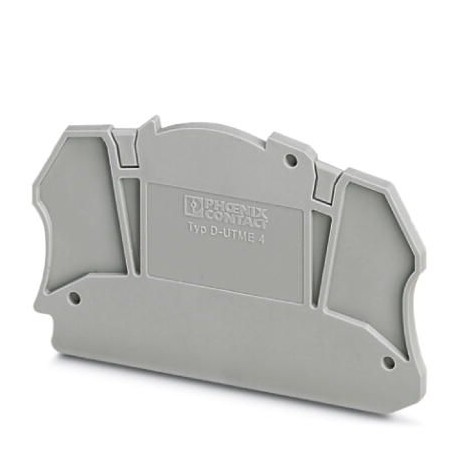

PHOENIX CONTACT D-UTME 4 D-UTME 4 3047491 PHOENIX CONTACT End cover View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D-UTME 4 3047491 PHOENIX CONTACT End cover

D-UTME 4

3047491

PHOENIX CONTACT

10 Pcs.

End cover Lid, 2.2 mm wide

Automation > Endplate and partition plate for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3047491
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 238 (C-1-2017)
GTIN4046356510363
Weight per Piece (excluding packing)3.450 g
Custom tariff number85389099
Country of originPL (Poland)

General

Colorgray
Flammability rating according to UL 94V0

Dimensions

Width2.2 mm
End cover width2.2 mm
Length65 mm
Height40 mm
Height NS 35/7,547.7 mm

General

Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3047491 Terminal blocks (EC000886)
Feature Name Feature Value
Colour (EF000007) Grey
Thickness (EF000125) 2.2 mm
Inflammability class of insulation material according to UL94 (EF002521) V0
