View larger
Images are for illustrative purposes only. Please refer to data sheet for details

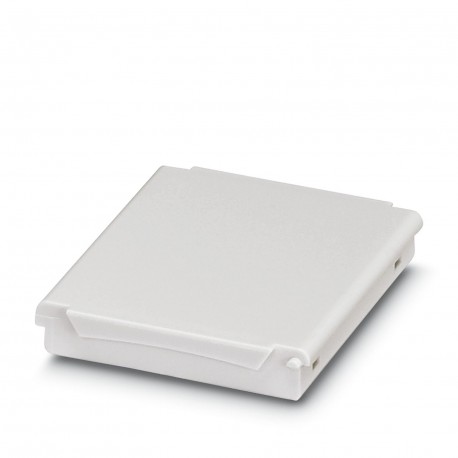

BC 53,6 DKL R KMGY 2896432 PHOENIX CONTACT Housing cover
BC 53,6 DKL R KMGY
2896432
PHOENIX CONTACT
10 Pcs.
Housing cover
Rail box for use in installation distributors according to DIN 43880, Fitted cover (fixed), width: 53.6 mm, height: 45 mm, depth: 8 mm, colour: light grey (7035)
DIN rail enclosure for use in cost allocators in accordance with DIN 43880, snap-on cover (fixed), width: 53.6 mm, height: 45 mm, depth: 8 mm, colour: light grey (similar to RAL 7035)
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2896432 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 699 (C-1-2013) |
| GTIN | 4046356103183 |
| Weight per Piece (excluding packing) | 6.800 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | Housing cover |
|---|---|
| Type | BC 53,6 DKL R KMGY |
| Order No. | 2896432 |
| Housing type | Installation component housing |
| Type | Cover |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027180800eCl@ss 7.027182702eCl@ss 8.027182702eCl@ss 9.027182702
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 53.6 mm |
| Height (EF000040) | 45 mm |
| Depth (EF000049) | 8 mm |
