View larger
Images are for illustrative purposes only. Please refer to data sheet for details

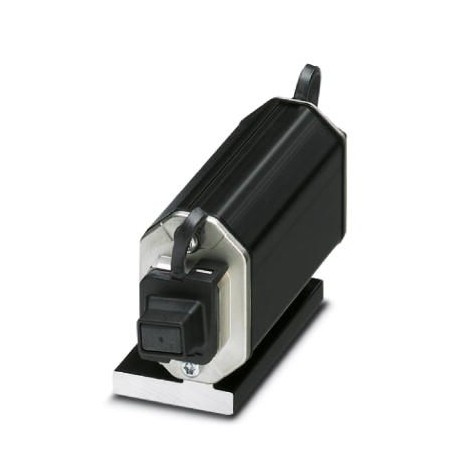

VS-MP-PPC/PPC-1G 1403685 PHOENIX CONTACT Coupling
VS-MP-PPC/PPC-1G
1403685
PHOENIX CONTACT
1 Pcs.
Coupling
Multiport data coupling: for passive PROFINET cabling to robots, incl. mounting foot
Cables > Data and communication cable
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1403685 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 366 (C-2-2017) |
| GTIN | 4046356664349 |
| Weight per Piece (excluding packing) | 247.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
General data
| Number of positions | 8 |
|---|---|
| Rated voltage (III/3) | 72 V (DC) |
| Contact material | Phosphor bronze |
| Housing material | Aluminum press-drawn section / die-cast zinc |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440101eCl@ss 8.027440101eCl@ss 9.027440101
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Number of cores (EF001792) | 8 |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Specification material outer sheath (EF011806) | Other |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Category (EF001619) | Other |
