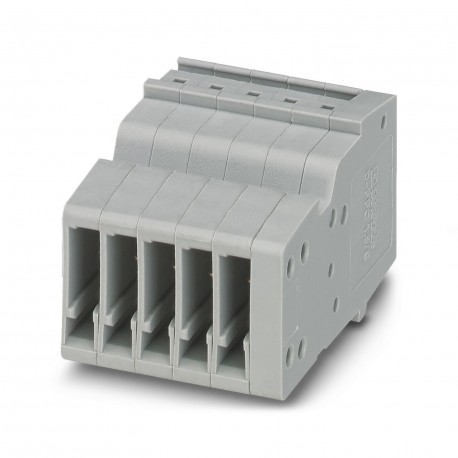

PPC 1,5/S/ 5 3213412 PHOENIX CONTACT COMBI receptacle

PPC 1,5/S/ 5

3213412

PHOENIX CONTACT

50 Pcs.

COMBI receptacle COMBI coupling, rated voltage: 500 V, rated current: 17.5 A, number of connections: 1, number of poles: 5, connection type: Push-in connection, 1st floor, Sizing cross-section: 1.5 mm², cross-section: 0.14 mm² - 1.5 mm², color: gray COMBI coupling, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 1, number of positions: 5, connection method: Push-in connection, 1 level, Rated cross section: 1.5 mm2, cross section: 0.14 mm2 - 1.5 mm2, color: gray

Connectors > Terminal block connector
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeTerminal coupling
Area of applicationRailway industry
Machine building
Plant engineering
Number of positions5
Pitch3.5 mm
Number of connections1
Number of rows1
Typeother
Potentials5
Data management status
Article revision02
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage6 kV
Maximum power dissipation for nominal condition0.56 W
Connection data
Nominal cross section1.5 mm²
1 level
Stripping length8 mm ... 10 mm
Internal cylindrical gageA1 / B1
Connection in acc. with standardIEC 61984
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Cross section AWG26 ... 16 (converted acc. to IEC)
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]26 ... 16 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.14 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.14 mm² ... 1 mm²
Nominal current17.5 A
Maximum load current17.5 A (with 1.5 mm² conductor cross section)
Nominal voltage500 V
Nominal cross section1.5 mm²
1 level Connection cross sections directly pluggable
Conductor cross section rigid0.25 mm² ... 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)0.34 mm² ... 1.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.34 mm² ... 1 mm²
Dimensions
Width17.5 mm
End cover width2.2 mm
Height27 mm
Depth17.8 mm
Pitch3.5 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Electrical tests
Surge voltage test
Test voltage setpoint7.3 kV
ResultTest passed
Short-time withstand current 1.5 mm²0.18 kA
ResultTest passed
Mechanical properties
Mechanical data
Open side panelYes
Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 61984

ETIM for 3213412 Terminal blocks (EC002021)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Total number of poles (without ground contact) (EF006240) 1
Width (EF000008) 20.5 mm
Connectable (EF006169) No
Number of poles (EF001391) 5

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
