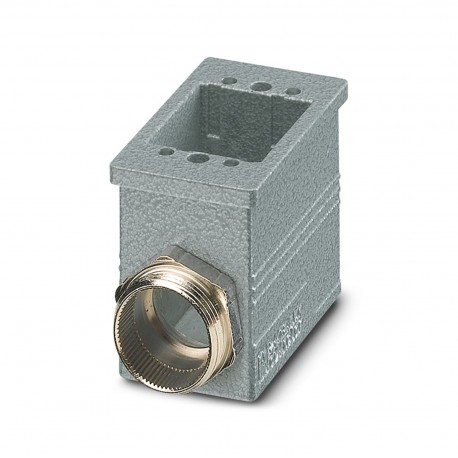

PHOENIX CONTACT VC-MP-K1 VC-MP-K1 1884568 PHOENIX CONTACT Housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-MP-K1 1884568 PHOENIX CONTACT Housing

VC-MP-K1

1884568

PHOENIX CONTACT

5 Pcs.

Housing Housing, Article family: VARIOCON, construction: VC1, housing material: Zinc die-casting, color: gray. In the use of fibre optic conductors, the bending radii of the cable manufacturer must be considered. Housing, Range of articles: VARIOCON, design: VC1, housing material: Zinc die-cast, color: gray, When using fiber optics, the bending radii of the cable manufacturers must be observed.

Connectors > Housing for rectangular connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralWhen using fiber optics, the bending radii of the cable manufacturers must be observed.
GeneralThe coupling housings may not be used in combination with the VC-D... contact carriers
Safety note
Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50 V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by Phoenix Contact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Operate the connector only when it is fully plugged in.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties
Product typeSleeve housings
Product familyVARIOCON
TypeVC1
No. of cable outlets1
Number of module slots2
Type of the screw connection1x Pg16
Shieldedno
Cable outletlateral
Data management status
Article revision05
Dimensions
Dimensional drawinglnwqygbhdk.jpg
Width36.4 mm
Height61 mm
Length62.6 mm
Thread type on seal sidePg16
Material specifications
Colorgray
Color of the housing partgray
MaterialDie-cast zinc (Housing)
Housing materialZinc die-cast
O-ring materialNBR
Mechanical properties
Mechanical data
Type of the screw connection1x Pg16
Locking typeNut
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65/IP66/IP67
Ambient temperature (operation)-40 °C ... 125 °C

ETIM for 1884568 Connectors (EC000437)
Feature Name Feature Value
Width (EF000008) 36.4 mm
Height (EF000040) 61 mm
Depth (EF000049) 62.6 mm
Coating housing (EF001601) Other
Housing colour (EF000136) Grey
Position cable feed (EF008218) Sideways
Position of the shackle (EF008459) None
With cable screw gland (EF000735) No
Mounting method of the cable gland (EF012210) Other
With hinged lid (EF000117) No
With distance piece (EF005072) No
With sealing (EF005610) No
Number of conduit inlets (EF000437) 1
Type of locking (EF000208) Screw
Operating temperature (EF002393) -40 °C
EMC-version (EF001062) No
