View larger
Images are for illustrative purposes only. Please refer to data sheet for details

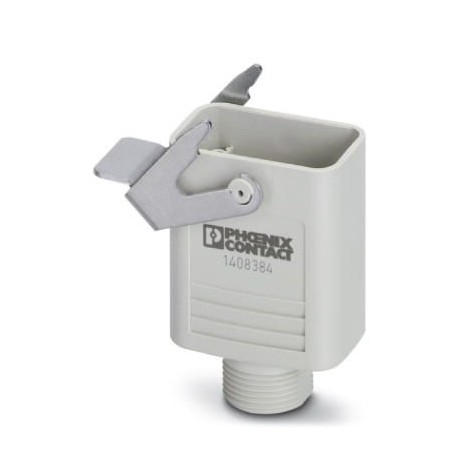

HC-COM-K-KML-O1PG16 1408384 PHOENIX CONTACT Housing
HC-COM-K-KML-O1PG16
1408384
PHOENIX CONTACT
2 Pcs.
Housing
COM coupling housing, with longitudinal flange, material: PC, cable outlets: 1, straight, height: 50.5 mm, cable gland: without, tubing: no, 1x Pg16, Standard
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1408384 |
|---|---|
| Packing unit | 2 pc |
| Minimum order quantity | 2 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 651 (C-2-2017) |
| GTIN | 4046356618120 |
| Weight per Piece (excluding packing) | 44.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Size | COM |
|---|---|
| Housing type | Coupling housings |
| Color | light gray |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Screw connection | none |
| Type of the screw connection | 1x Pg16 |
| Material | PC |
| Housing material | PC |
| Seal material | NBR |
| Material lock | Stainless steel |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
