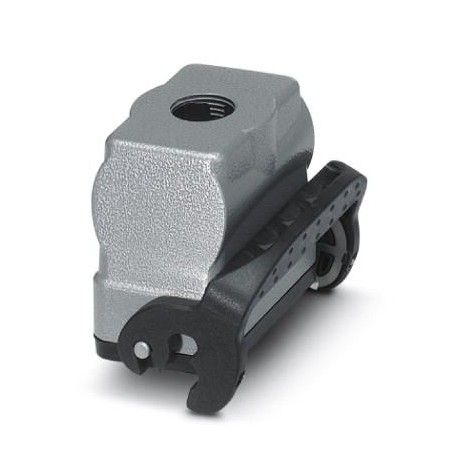

HC-B 6-KML-H-O1STM25 1460283 PHOENIX CONTACT Housing

Name: HC-B 6-KML-H-O1STM25 1460283 PHOENIX CONTACT Housing
Brand: PHOENIX CONTACT
SKU: 1460283

Reference: HC-B 6-KML-H-O1STM25

Code: 1460283

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Housing HEAVYCON B6 coupling housing, with longitudinal lock, height 77.5 mm, with 1 x M25 thread, straight cable outlet

Categories:
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

More info

▲

Orderkey	1460283
Packing unit	10 pc
Catalog page	Page 224 (NTK-2012)
GTIN	4046356695091
Weight per Piece (excluding packing)	172.490 g
Custom tariff number	85389099
Country of origin	DE (Germany)

Degree of protection of housing (IP)	IP65
Ambient temperature (operation)	-40 °C ... 125 °C

Note	For contact inserts HC-B6, BB10, DD24, M
Size	B6
Housing type	Coupling housings
Locking type	with single locking latch
No. of cable outlets	1
Cable outlet	straight
Screw connection	none
Type of the screw connection	1x M25
Housing material	Aluminum die-cast
Housing surface material	Powder-coated, gray
Seal material	NBR
Material lock	Stainless steel, handle: PA
Material grip body interlock	PA-GF
