View larger
Images are for illustrative purposes only. Please refer to data sheet for details

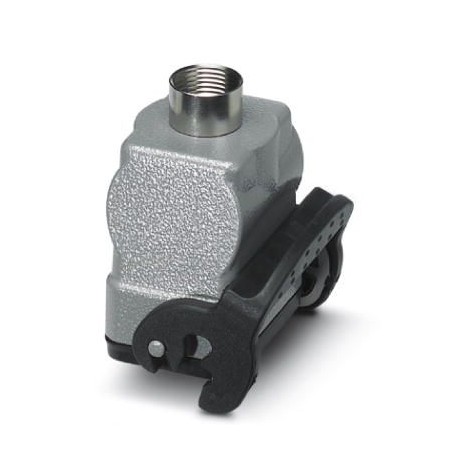

HC-B 6-KML-H-O1PG29 1460281 PHOENIX CONTACT Housing
HC-B 6-KML-H-O1PG29
1460281
PHOENIX CONTACT
1 Pcs.
Housing
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1460281 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 224 (NTK-2012) |
| GTIN | 4046356695084 |
| Weight per Piece (excluding packing) | 210.960 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B6, BB10, DD24, M |
|---|---|
| Size | B6 |
| Housing type | Coupling housings |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Screw connection | none |
| Type of the screw connection | 1x Pg29 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
