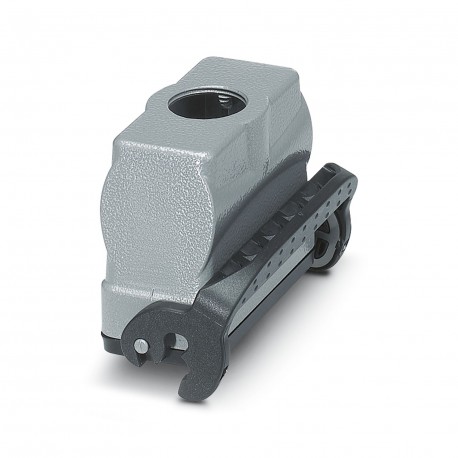

PHOENIX CONTACT HC-B 24-KML-H-O1STM32 HC-B 24-KML-H-O1STM32 1460325 PHOENIX CONTACT HEAVYCON B24 coupling housing, with single locking latch, heig.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 24-KML-H-O1STM32 1460325 PHOENIX CONTACT HEAVYCON B24 coupling housing, with single locking latch, heig..

HC-B 24-KML-H-O1STM32

1460325

PHOENIX CONTACT

10 Pcs.

HEAVYCON B24 coupling housing, with single locking latch, height: 80.5 mm, with 1 x M32 thread, straight cable outlet

Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Height82 mm
Width43 mm
Length120 mm

Ambient conditions

Degree of protection of housing (IP)IP65
Ambient temperature (operation)-40 °C ... 125 °C

General

NoteFor contact inserts HC-B24, BB46, BBB64, D64, DD108, M
TypeB24
Housing typeCoupling housings
Locking typeWith single locking latch
No. of cable outlets1
Cable exitstraight
Screw connectionnone
Type of the screw connection1x M32
Housing materialAluminum die-cast
Housing surface materialPowder-coated, gray
Seal materialNBR
Material lockStainless steel, handle: PA
Material grip body interlockPA
