View larger
Images are for illustrative purposes only. Please refer to data sheet for details

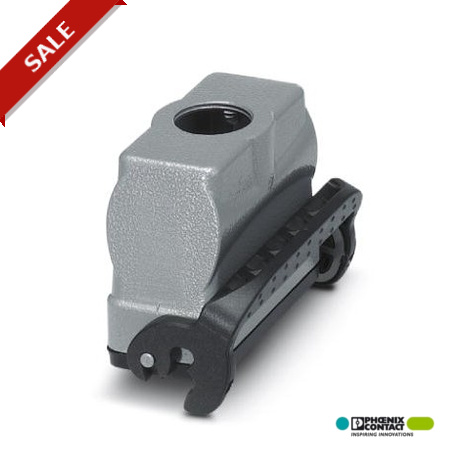

HC-B 16-KML-H-O1STM40 1460309 PHOENIX CONTACT HEAVYCON B16 coupling housing, with single locking latch, heig..
HC-B 16-KML-H-O1STM40
1460309
PHOENIX CONTACT
10 Pcs.
HEAVYCON B16 coupling housing, with single locking latch, height: 82 mm, with 1 x M40 thread, straight cable outlet
HEAVYCON B16 coupling housing, with longitudinal lock, height 82 mm, with 1x M40, straight cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Height | 82 mm |
|---|---|
| Width | 43 mm |
| Length | 73 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
|---|---|
| Type | B16 |
| Housing type | Coupling housings |
| Locking type | With single locking latch |
| No. of cable outlets | 1 |
| Cable exit | straight |
| Screw connection | none |
| Type of the screw connection | 1x M40 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
