View larger
Images are for illustrative purposes only. Please refer to data sheet for details

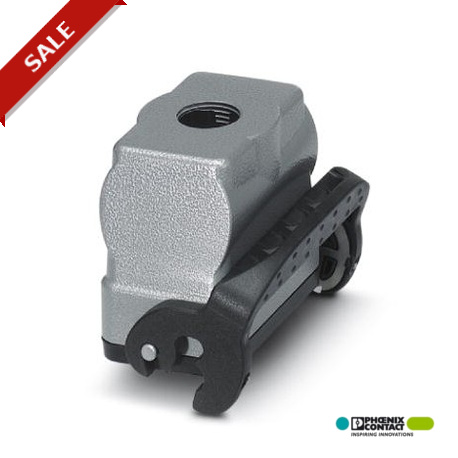

HC-B 10-KML-H-O1STM32 1460292 PHOENIX CONTACT HEAVYCON B10 coupling housing, with single locking latch, heig..
HC-B 10-KML-H-O1STM32
1460292
PHOENIX CONTACT
10 Pcs.
HEAVYCON B10 coupling housing, with single locking latch, height: 77.5 mm, with 1 x M32 thread, straight cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Height | 77.5 mm |
|---|---|
| Width | 43 mm |
| Length | 73 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
|---|---|
| Type | B10 |
| Housing type | Coupling housings |
| Locking type | With single locking latch |
| No. of cable outlets | 1 |
| Cable exit | straight |
| Screw connection | none |
| Type of the screw connection | 1x M32 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
