View larger
Images are for illustrative purposes only. Please refer to data sheet for details

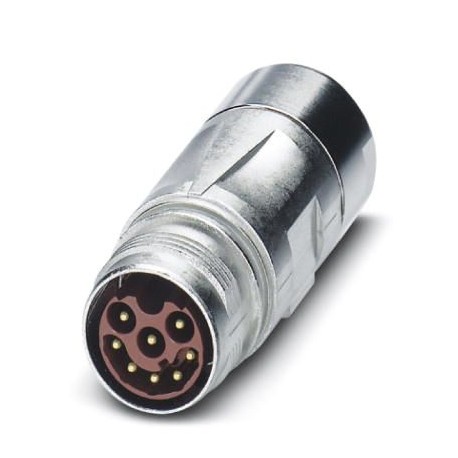

ST-08P1N8A9K05S 1617834 PHOENIX CONTACT Coupler connector
ST-08P1N8A9K05S
1617834
PHOENIX CONTACT
30 Pcs.
Coupler connector
Plug-in coupling connector, straight, SPEEDCON lock, M17, number of poles: 8, contact type: Pin, shielded: yes, cable diameter range: 11 mm ... 12.7 mm, number of poles: 8, connection type: Crimped connection
Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1617834 |
|---|---|
| Packing unit | 30 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 166 (NTK-2012) |
| GTIN | 4046356708791 |
| Weight per Piece (excluding packing) | 111.110 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Type of locking | SPEEDCON locking |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Number of positions | 8 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
| Conductor entry | 11 mm ... 12.7 mm |
| Pg housing screw connection | none |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Nominal / operating voltage of power contacts | 60 V |
| Rated surge voltage of power contacts | 1.5 kV |
| Overvoltage category of power contacts | II |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
