View larger
Images are for illustrative purposes only. Please refer to data sheet for details

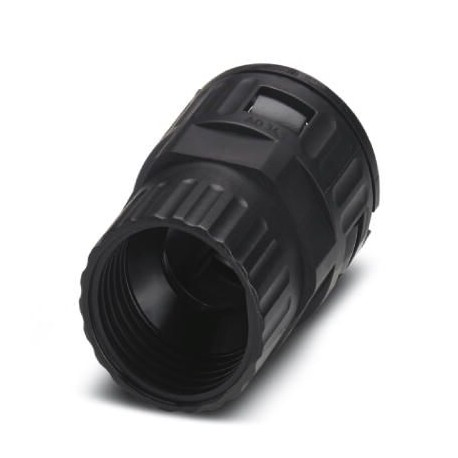

WP-GR HF CTA M32 BK 3241222 PHOENIX CONTACT Corrugated tube screw connection
WP-GR HF CTA M32 BK
3241222
PHOENIX CONTACT
10 Pcs.
Corrugated tube screw connection
Adapter for corrugated pipe, with M32 internal thread, straight, black, IP66, for connecting corrugated pipes to HEAVYCON-EVO plastic screw connections or to the ADVANCE plastic box.
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241222 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 585 (C-4-2013) |
| GTIN | 4046356860840 |
| Weight per Piece (excluding packing) | 30.390 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
General
| Color | black |
|---|---|
| Type | With strain relief |
| Internal thread | |
| Components | free from silicone, halogen, and cadmium |
| Flammability rating according to UL 94 | V2 |
| Material | PA |
| Assembly instructions | The corrugated pipe adapter is used in the screw connection instead of the union nut. Thanks to the adapter, corrugated pipes can be used. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127140900eCl@ss 6.027140900eCl@ss 7.027439201eCl@ss 8.027439201eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Nominal size in inch (EF005462) | Other |
| Degree of protection (IP) (EF005474) | IP66 |
| Revolving thread (EF001757) | No |
| Type of connection (EF000064) | Other |
| Thread connection size (EF007834) | Other |
| Thread length (EF000368) | 32.6 mm |
| One-piece (EF001774) | No |
| With integrated holder (EF007952) | No |
| Material screw gland (EF008122) | Polyamide (PA) |
| Total height (EF001761) | 58.9 mm |
| Total length (EF000369) | 58.9 mm |
| Colour (EF000007) | Black |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit UR (EF001763) | No |
