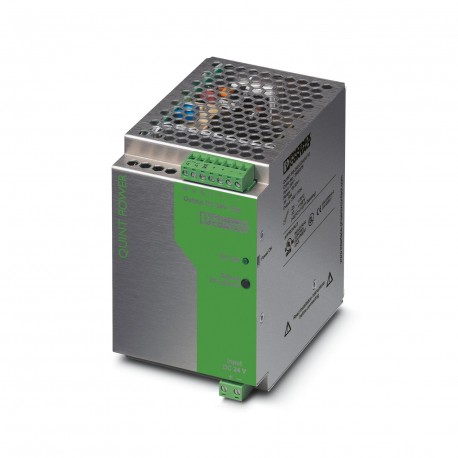

PHOENIX CONTACT QUINT-PS-24DC/24DC/10 QUINT-PS- 24DC/24DC/10 2866378 PHOENIX CONTACT DC/DC converters View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT-PS- 24DC/24DC/10 2866378 PHOENIX CONTACT DC/DC converters

QUINT-PS-24DC/24DC/10

2866378

PHOENIX CONTACT

1 Pcs.

DC/DC converters QUINT DC-DC transformer, primary switched, input: 24 V DC, output: 24 V DC/10 A QUINT DC-DC Converter, Switching, Input: 24 V DC, Output: 24 V DC/10 A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866378
Packing unit1 pc
Catalog pagePage 598 (IF-2009)
GTIN4017918987169
Weight per Piece (excluding packing)1,364.300 g
Custom tariff number85044030
Country of originCN (China)

Dimensions

Width80 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly83 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage24 V DC
Nominal input voltage range24 V DC
Input voltage range18 V DC ... 32 V DC
Frequency range DC0 Hz
Current consumptiontyp. 11.4 A (24 V)
Inrush surge current< 20 A (typical)
Mains buffering> 3 ms (24 V DC)
Input fuse25 A (slow-blow, internal)
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)10 A (-25 °C ... 60 °C)
Derating60 °C ... 70 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistance35 V DC
Output overvoltage protection< 35 V DC
Max. capacitive loadunlimited
Active current limitationApprox. 18 A
Control deviation< 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 60 mVPP
Output power240 W
Typical response time< 1 s
Maximum power dissipation in no-load condition< 2 W
Power loss nominal load max.< 28 W

General

Net weight0.95 kg
Operating voltage displayGreen LED
Efficiency> 88 %
Insulation voltage input/output1 kV (routine test)
1.5 kV (type test)
Protection classIII
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 500000 h
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3

Connection data, output

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3

Signaling

Output nameDC OK active
Output descriptionUOUT> 21.5 V: High signal
Maximum switching voltage≤ 24 V DC
Output voltage+ 24 V DC
Continuous load current≤ 40 mA
Status display"DC OK" LED green
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Screw threadM3
Output nameDC OK floating
Output descriptionUOUT> 21.5 V: Contact closed
Maximum switching voltage≤ 30 V AC/DC
Continuous load current≤ 1 A
Status display"DC OK" LED green

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive 89/336/EC
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge8 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 2 GHz
Test field strength10 V/m
Standards/regulationsEN 61000-4-4
EN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V
Standards/regulationsEN 61000-4-11
Standard - Safety of transformersEN 61558-2-17
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV)
EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipmentEN 50178
Shipbuilding approvalDNV GL (EMC A), ABS
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL/C-UL Listed UL 1604 Class I, Division 2, Groups A, B, C, D
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
