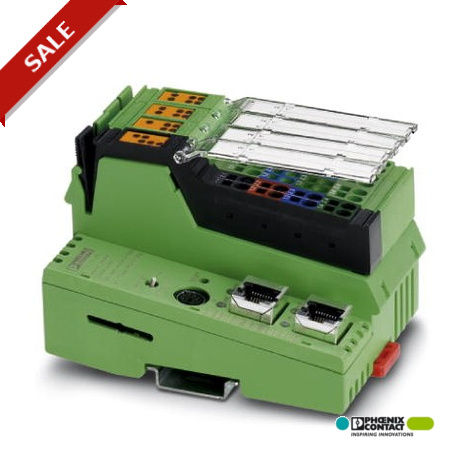

ILC 191 ETH 2TX 2700976 PHOENIX CONTACT The Inline controller offers the option of communicating via PROFINE..
ILC 191 ETH 2TX
2700976
PHOENIX CONTACT
1 Pcs.
The Inline controller offers the option of communicating via PROFINET and Modbus/TCP. Programming is carried out using PC Worx Express or PC Worx (IEC 61131-3).
The Inline controller offers the possibility of communicating via PROFINET and Modbus/TCP. Programming is done with PC Worx Express or PC Worx (IEC 61131-3).
Automation > PLC CPU-module
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product description
The ILC 191 ETH 2TX modular small-scale controller for the Inline I/O system is at the heart of Easy Automation. The ILC 1X1 series is characterized by its support for the Modbus/TCP and PROFINET Ethernet-based protocols. A new feature is the support for an optional SD card.
Dimensions
| Width | 80 mm |
|---|---|
| Height | 119.8 mm |
| Depth | 71.5 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (operation) | 5g |
Control system
| Programming tool | PC WORX / PC WORX EXPRESS |
|---|---|
| Diagnostics tool | DIAG+ |
| Configuration tool | Config+ Version 1.01 or later |
Mechanical design
| Weight | 285 g |
|---|---|
| Diagnostics display | No |
| Controller redundancy | No |
Data interfaces
| Interface | INTERBUS local bus (master) |
|---|---|
| Connection method | Inline data jumper |
| Transmission speed | 500 kBaud / 2 MBaud (can be switched) |
| Interface | Parameterization/operation/diagnostics |
| Connection method | RS-232-C, 6-pos. MINI-DIN socket (PS/2), Ethernet 10/100 (RJ45) |
| Transmission speed | max. 115,2 kBit/s |
| Interface | Ethernet 10Base-T/100Base-TX |
| Connection method | RJ45 socket |
| Transmission speed | 10/100 MBit/s |
PROFINET
| Device function | PROFINET device |
|---|
Power supply
| Typical current consumption | 210 mA |
|---|---|
| Max. current consumption | 870 mA (370 mA communications power + 500 mA analog voltage supply) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Residual ripple | ± 5 % |
| Power dissipation | max. 5 W |
Fieldbus function
| Amount of process data | max. 4096 Bit (INTERBUS) |
|---|---|
| max. 32768 Bit (internal Modbus Client) | |
| Number of supported devices | max. 128 |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| Number of devices with parameter channel | max. 24 |
| Number of supported branch terminals with remote bus branch | max. 3 |
Direct I/Os
| Input name | Digital inputs |
|---|---|
| Number of inputs | 8 |
| Connection method | Inline potential distributor |
| Description of the input | EN 61131-2 type 1 NPN/PNP |
| Output name | Digital outputs |
| Number of outputs | 4 |
| Connection method | 2, 3, 4-wire |
| Maximum output current per channel | 500 mA |
| Without analog input | yes |
| Without analog output | yes |
| Without pulse direction output | yes |
| Without counter input | yes |
IEC 61131 runtime system
| Programming tool | PC WORX / PC WORX EXPRESS |
|---|---|
| Program memory | 1 Mbyte (86 K instructions (IL)) |
| Mass storage | 1 Mbyte |
| Retentive mass storage | 48 kByte (NVRAM) |
| Number of control tasks | 8 |
| Realtime clock | Yes |
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Model (EF000010) | Modular |
| Processing time (1K, binary operation) (EF003004) | 0.0013 ms |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of digital inputs (EF001992) | 8 |
| Number of digital outputs (EF001993) | 4 |
| With optical interface (EF003028) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for INTERBUS (EF003054) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Redundancy (EF003156) | No |
| Type of memory (EF002996) | NVRAM |
| Memory size (EF002997) | 1024 kByte |
| Additional program memory possible (EF003029) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 80 mm |
| Height (EF000040) | 120.4 mm |
| Depth (EF000049) | 70.23 mm |
