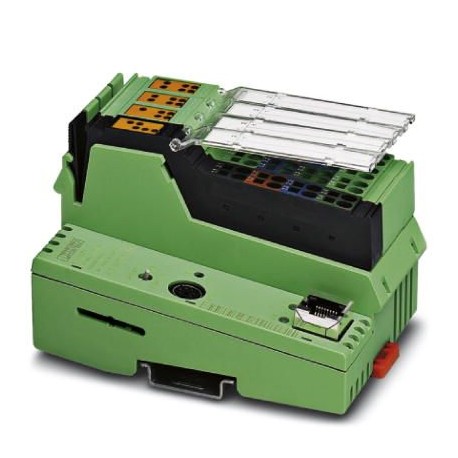

PHOENIX CONTACT ILC 151 ETH ILC 151 ETH 2700974 PHOENIX CONTACT Controller View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ILC 151 ETH 2700974 PHOENIX CONTACT Controller

ILC 151 ETH

2700974

PHOENIX CONTACT

1 Pcs.

Controller The Inline controller offers the possibility of communicating via PROFINET and Modbus/TCP. Programming is done with PC Worx Express or PC Worx (IEC 61131-3).

Automation > PLC CPU-module
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2700974
Packing unit1 pc
Catalog pagePage 81 (C-6-2017)
GTIN4046356665506
Weight per Piece (excluding packing)350.000 g
Custom tariff number85371091
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width80 mm
Height119.8 mm
Depth71.5 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)10 % ... 95 % (according to DIN EN 61131-2)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Shock25g, Criterion 1, according to IEC 60068-2-27
Vibration (operation)5g

Control system

Engineering toolPC WORX
PC WORX EXPRESS
Programming languages supportedProgramming in acc. with IEC 61131-3
Diagnostics toolDIAG+
Configuration toolConfig+ Version 1.01 or later

IEC 61131 runtime system

Engineering toolPC WORX
PC WORX EXPRESS
Program memory256 kByte
Mass storage256 kByte
Retentive mass storage8 kByte (NVRAM)
Number of control tasks8
Realtime clockYes

Fieldbus function

Amount of process datamax. 4096 Bit (INTERBUS)
max. 16384 Bit (internal Modbus /TCP client)
Number of supported devicesmax. 128
Number of local bus devices that can be connectedmax. 63 (observe current consumption)
Number of devices with parameter channelmax. 16
Number of supported branch terminals with remote bus branchmax. 3

Data interfaces

InterfaceEthernet 10Base-T/100Base-TX
Number1
Connection methodRJ45 socket
Transmission speed10/100 Mbps
InterfaceINTERBUS local bus (master)
Number1
Connection methodInline data jumper
Transmission speed500 kBaud / 2 MBaud (can be switched)
InterfaceParameterization/operation/diagnostics
Number1
Connection method6-pos. MINI DIN socket (PS/2)
Transmission speedmax. 115.2 kbps

PROFINET

Device functionPROFINET device

Direct I/Os

Input nameDigital inputs
Number of inputs8
Connection methodInline potential distributor
Connection technology2, 3, 4-wire
Description of the inputEN 61131-2 type 1 NPN/PNP
Output nameDigital outputs
Number of outputs4
Connection methodSpring-cage connection
Connection technology2, 3, 4-wire
Maximum output current per channel500 mA

Power supply

Typical current consumption210 mA
Max. current consumption870 mA (370 mA communications power + 500 mA analog voltage supply)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC
Residual ripple± 5 %
Power dissipationmax. 5 W

Mechanical design

Weight285 g
Diagnostics displayNo
Controller redundancyNo
Safety functionNo

General data

ProcessorAltera Nios II 64 MHz

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Interference emissionNoise emission test as per EN 61000-6-4 EN 55011 Class A
Immunity to surgeNoise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, supply lines DC: 0.5 kV/0.5 kV (symmetrical/asymmetrical), fieldbus cable shield 1 kV
Immunity to burstNoise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion A, all interfaces 1 kVCriterion B, all interfaces 2 kV
Immunity to EFNoise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
Immunity to ESDNoise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
Immunity to conducted interferenceNoise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A; Test voltage 10 V
Vibration (storage/transport)5g
Shock25g, Criterion 1, according to IEC 60068-2-27
Vibration (operation)5g

Environmental Product Compliance

REACh SVHC1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) 110-71-4
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2700974 PLC's (EC000236)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) DC
Model (EF000010) Modular
Processing time (1K, binary operation) (EF003004) 0.0015 ms
Number of HW-interfaces industrial Ethernet (EF003020) 1
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 1
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 1
Number of analogue outputs (EF001995) 0
Number of analogue inputs (EF001994) 0
Number of digital inputs (EF001992) 8
Number of digital outputs (EF001993) 4
With optical interface (EF003028) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for INTERBUS (EF003054) Yes
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Redundancy (EF003156) No
Type of memory (EF002996) NVRAM
Memory size (EF002997) 256 kByte
Additional program memory possible (EF003029) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 80 mm
Height (EF000040) 120.4 mm
Depth (EF000049) 70.23 mm
