View larger
Images are for illustrative purposes only. Please refer to data sheet for details

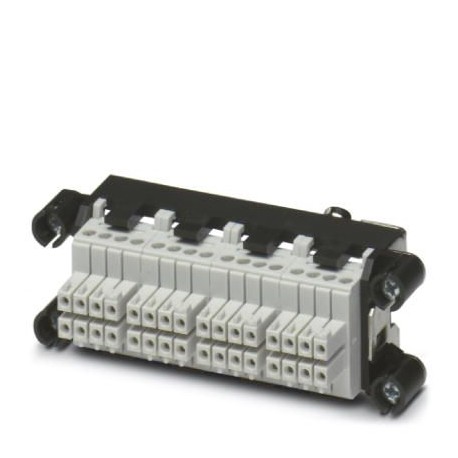

VC-TR3/4M-PEA-S8888-SET 1607263 PHOENIX CONTACT Contact insert set
VC-TR3/4M-PEA-S8888-SET
1607263
PHOENIX CONTACT
5 Pcs.
Contact insert set
Contact holder set for aerial side, bobbin frame with PE, 4 fixing screws, pre-assembled 8-pole contact holders, 6 encoder pins
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1607263 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 32 (C-2-2013) |
| GTIN | 4017918941017 |
| Weight per Piece (excluding packing) | 45.570 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Connection technology | Screw connection |
|---|---|
| Connection method | Screw connection |
| Tightening torque | 0.2 Nm ... 0.25 Nm |
| Degree of pollution | 3 |
| Number of positions | 31+PE |
| Insertion/withdrawal cycles | ≥ 100 |
| Size | VC3 |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 0.75 mm² |
| Conductor cross section | 0.14 mm² ... 1.5 mm² |
Material data
| Housing material | PA |
|---|---|
| Contact material | CuZn |
| Contact surface material | Tin-plated |
| Contact carrier material | PA |
Electrical characteristics
| Rated voltage (III/3) | 160 V |
|---|---|
| Nominal voltage UN | 160 V |
| Rated surge voltage | 2.5 kV |
| 2.5 kV | |
| Rated current | 10 A |
| 10 A | |
| Nominal current IN | 10 A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 32 |
