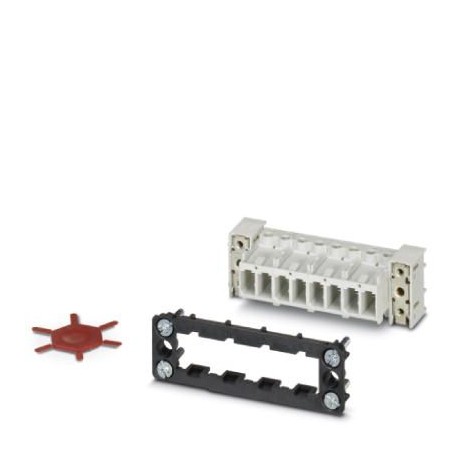

PHOENIX CONTACT VC-AR3/4M-S2222-SET VC-AR3/4M-S2222-SET 1607322 PHOENIX CONTACT Contact insert set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-AR3/4M-S2222-SET 1607322 PHOENIX CONTACT Contact insert set

VC-AR3/4M-S2222-SET

1607322

PHOENIX CONTACT

5 Pcs.

Contact insert set Contact insert set, Article family: VARIOCON, construction: VC3, housing material: PA, number of poles: 8, minimum conductor cross-section: 0.2 mm², max. conductor cross-section: 4 mm², nominal voltage: 400, assigned current: 20 A, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.

Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1607322
Packing unit5 pc
Minimum order quantity5 pc
NoteMade to Order (non-returnable)
Catalog pagePage 24 (C-2-2013)
GTIN4017918941055
Weight per Piece (excluding packing)55.040 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteConnectors may only be connected/disconnected when under no load.
Connection technologyScrew connection
Connection methodScrew connection
Tightening torque0.5 Nm ... 0.6 Nm
Degree of pollution3
Number of positions7+PE
Insertion/withdrawal cycles≥ 50
SizeVC3
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section0.2 mm² ... 4 mm²
Connection cross section AWG30 ... 10
Stripping length of the individual wire7 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C

Material data

Housing materialPA
Contact materialCuZn
Contact surface materialTin-plated
Contact carrier materialPA

Electrical characteristics

Rated voltage (III/3)400 V
Nominal voltage UN400 V
Rated surge voltage6 kV
6 kV
Rated current20 A
20 A

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1607322 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 8
