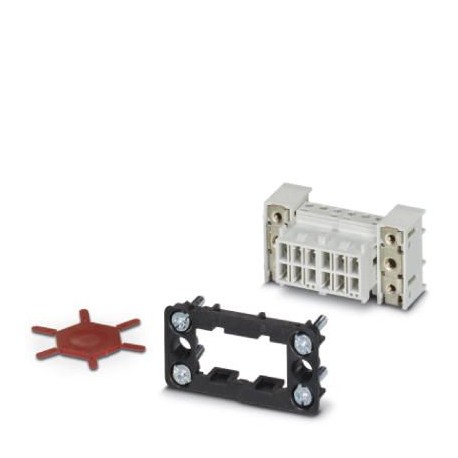

PHOENIX CONTACT VC-AR1/2M-S66-SET VC-AR1/2M-S66-SET 1607346 PHOENIX CONTACT Contact insert set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-AR1/2M-S66-SET 1607346 PHOENIX CONTACT Contact insert set

VC-AR1/2M-S66-SET

1607346

PHOENIX CONTACT

5 Pcs.

Contact insert set Contact insert set, Article family: VARIOCON, construction: VC1, housing material: PA, number of poles: 12, minimum conductor cross-section: 0.14 mm², max. conductor cross-section: 1.5 mm², nominal voltage: 250, assigned current: 10 A, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.

Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1607346
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 24 (C-2-2013)
GTIN4017918941079
Weight per Piece (excluding packing)40.640 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteConnectors may only be connected/disconnected when under no load.
Connection technologyScrew connection
Connection methodScrew connection
Tightening torque0.22 Nm ... 0.25 Nm
Degree of pollution3
Number of positions11+PE
Insertion/withdrawal cycles≥ 100
SizeVC1
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.0.75 mm²
Conductor cross section0.14 mm² ... 1.5 mm²
Connection cross section AWG28 ... 16
Stripping length of the individual wire7 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C

Material data

Housing materialPA
Contact materialCuZn
Contact surface materialTin-plated
Contact carrier materialPA

Electrical characteristics

Rated voltage (III/3)250 V
Nominal voltage UN250 V
Rated surge voltage4 kV
4 kV
Rated current10 A
10 A
Nominal current IN10 A

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1607346 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
