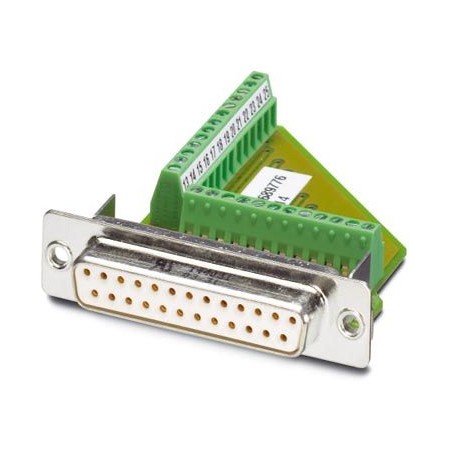

VS-25-BU-DSUB/25-MPT-0,5 1689776 PHOENIX CONTACT D-SUB contact insert
VS-25-BU-DSUB/25-MPT-0,5
1689776
PHOENIX CONTACT
10 Pcs.
D-SUB contact insert
D-SUB contact insert, wrap size 3, with 25 signal contacts, female contact type, screw connection, straight, for mounting frames and bobbin housings in IP67 protection
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689776 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 210 (C-2-2013) |
| GTIN | 4017918914073 |
| Weight per Piece (excluding packing) | 28.470 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 25 |
|---|---|
| Connection profile | 25-pos. D-SUB |
| Insertion/withdrawal cycles | ≥ 200 |
| Connection method | Screw connection |
| Conductor cross section | 0.14 mm² ... 0.5 mm² |
| Connection cross section AWG | 26 ... 20 |
| Insertion force per signal contact | ≤ 3.30 N |
| Extraction force per signal contact | ≤ 2.2 N |
| Mounting type | Hole |
| Insulation resistance | ≥ 5000 MΩ |
| Degree of protection | IP20 |
| Type | 25 |
| Size of housing | 3 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | PBTP |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
Electrical characteristics
| Number of positions | 25 |
|---|---|
| Rated current | 5 A |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 60 V |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 25 |
