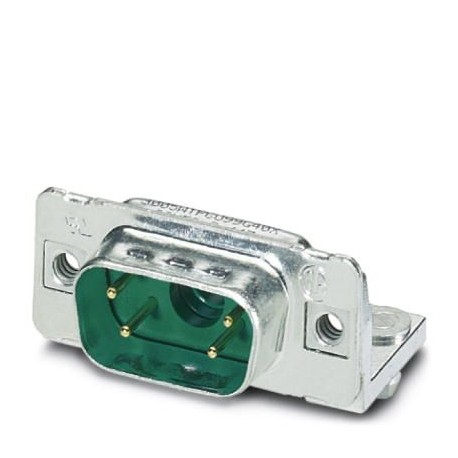

VS-09-ST-DSUB-1P-4S-LH 1655315 PHOENIX CONTACT D-SUB combination contact insert
VS-09-ST-DSUB-1P-4S-LH
1655315
PHOENIX CONTACT
10 Pcs.
D-SUB combination contact insert
Combined contact insert D-SUB, number of poles: 5, material: Steel, tin-plated, connection type: Weld connection, housing size: 1
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1655315 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 215 (C-2-2013) |
| GTIN | 4046356029254 |
| Weight per Piece (excluding packing) | 11.010 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 5 |
|---|---|
| Connection profile | D-SUB 9 |
| Insertion/withdrawal cycles | ≥ 200 |
| Connection method | Solder connection |
| Insertion force per signal contact | ≤ 3.40 N |
| Extraction force per signal contact | ≥ 0.2 N |
| Mounting type | 4-40 UNC thread |
| Insulation resistance | ≥ 5 GΩ |
| Type | 09 |
| Size of housing | 1 |
| Note | The contacts must be ordered separately since they are not included in the scope of supply of the combi contact inserts. |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Steel, tin-plated |
| Contact carrier material | PBT-GF |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
Electrical characteristics
| Number of positions | 5 |
|---|---|
| Rated current | 5 A (at 20°C (signal contacts)) |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 250 V |
| Test voltage | 1200 V |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
