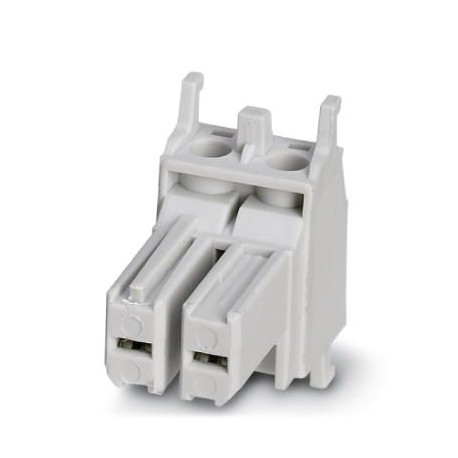

PHOENIX CONTACT VC-TFS 2 VC-TFS 2 1852846 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-TFS 2 1852846 PHOENIX CONTACT Contact insert

VC-TFS 2

1852846

PHOENIX CONTACT

50 Pcs.

Contact insert Contact insert, Family of items: VARIOCON, housing material: Polyamide, color: light gray, number of poles: 2, min. conductor section: 0.25 mm², max. conductor section: 4 mm², nominal voltage: 400, assigned current: 20 A, Connection type: Screw connection, Contact connection type: Female. Plug-in connectors should be operated only in an inert (unloaded) state.

Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1852846
Packing unit50 pc
Catalog pagePage 33 (C-2-2013)
GTIN4017918127145
Weight per Piece (excluding packing)8.730 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteConnectors may only be connected/disconnected when under no load.
Connection technologyScrew connection
Connection methodScrew connection
Tightening torque0.5 Nm ... 0.6 Nm
Degree of pollution3
Number of positions2
Insertion/withdrawal cycles≥ 100
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.2.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.2.5 mm²
Conductor cross section0.2 mm² ... 4 mm²
Connection cross section AWG24 ... 12
Stripping length of the individual wire10 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C

Material data

Housing materialPA
Contact materialCuZn
Contact surface materialTin-plated
Contact carrier materialPA

Electrical characteristics

Rated voltage (III/3)400 V
Rated surge voltage6 kV
6 kV
Rated current20 A
20 A

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1852846 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 2
