View larger
Images are for illustrative purposes only. Please refer to data sheet for details

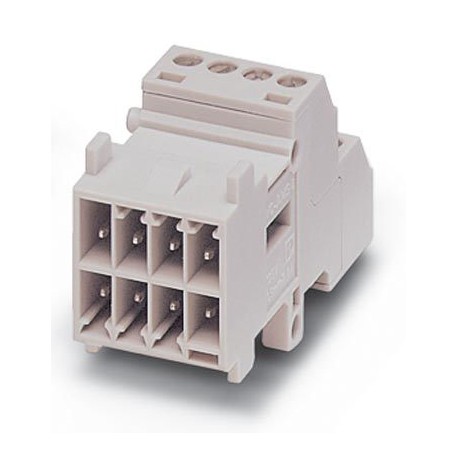

VC-AMS 8-PE 1583568 PHOENIX CONTACT Contact insert
VC-AMS 8-PE
1583568
PHOENIX CONTACT
50 Pcs.
Contact insert
Contact insert, Product family: VARIOCON, housing material: Polyamide, color: light gray, number of poles: 8, min. conductor section: 0.14 mm², max. conductor section: 1.5 mm², nominal voltage: 160, assigned current: 10 A, Connection type: Screw connection, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1583568 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 25 (C-2-2013) |
| GTIN | 4046356153249 |
| Weight per Piece (excluding packing) | 8.500 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Note | Connectors may only be connected/disconnected when under no load. |
|---|---|
| Connection technology | Screw connection |
| Connection method | Screw connection |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Degree of pollution | 3 |
| Number of positions | 7+PE |
| Conductor cross section | 0.14 mm² ... 1.5 mm² |
| Connection cross section AWG | 28 ... 16 |
| Stripping length of the individual wire | 7 mm |
Electrical characteristics
| Rated voltage (III/3) | 160 V |
|---|---|
| Rated surge voltage | 2.5 kV |
| 2.5 kV | |
| Rated current | 10 A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
