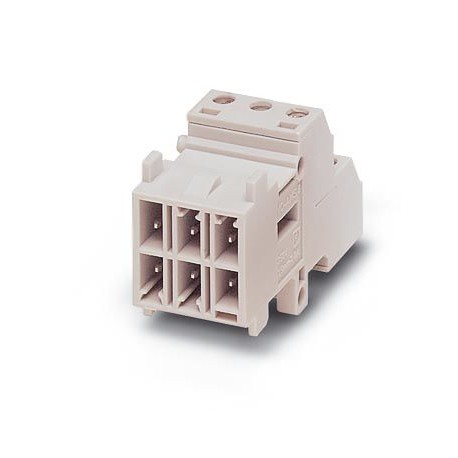

PHOENIX CONTACT VC-AMS 6 VC-AMS 6 1854019 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-AMS 6 1854019 PHOENIX CONTACT Contact insert

VC-AMS 6

1854019

PHOENIX CONTACT

50 Pcs.

Contact insert Contact insert, Article family: VARIOCON, housing material: Polyamide, color: light gray, number of poles: 6, min. conductor section: 0.14 mm², max. conductor section: 1.5 mm², nominal voltage: 250, assigned current: 10 A, Connection type: Screw connection, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.

Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1854019
Packing unit50 pc
Catalog pagePage 25 (C-2-2013)
GTIN4017918144104
Weight per Piece (excluding packing)8.090 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteConnectors may only be connected/disconnected when under no load.
Connection technologyScrew connection
Connection methodScrew connection
Tightening torque0.22 Nm ... 0.25 Nm
Degree of pollution3
Number of positions6
Insertion/withdrawal cycles≥ 100
Conductor cross section AWG min.28
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.75 mm²
Conductor cross section0.14 mm² ... 1.5 mm²
Connection cross section AWG28 ... 16
Stripping length of the individual wire6 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C

Material data

Housing materialPA 6.6
Contact materialCuZn
Contact surface materialTin-plated
Contact carrier materialPA

Electrical characteristics

Rated voltage (III/3)250 V
Rated surge voltage4 kV
4 kV
Rated current10 A

Standards and Regulations

Halogen-freeyes
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1854019 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 6
