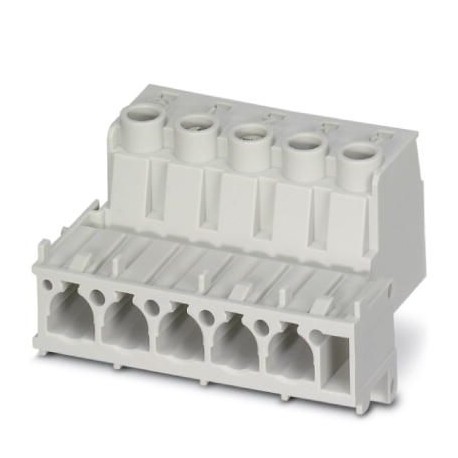

VC-AMS 5 1607748 PHOENIX CONTACT Contact insert
VC-AMS 5
1607748
PHOENIX CONTACT
5 Pcs.
Contact insert
Contact insert, Article family: VARIOCON, construction: VC3, housing material: PA, color: light gray, number of poles: 5, min. conductor section: 0.5 mm², max. conductor section: 16 mm², nominal voltage: 690, assigned current: 70 A, Connection type: Screw connection, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1607748 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 25 (C-2-2013) |
| GTIN | 4017918969202 |
| Weight per Piece (excluding packing) | 62.200 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Note | Connectors may only be connected/disconnected when under no load. |
|---|---|
| Connection technology | Screw connection |
| Connection method | Screw connection |
| Tightening torque | 1.2 Nm ... 1.8 Nm |
| Degree of pollution | 3 |
| Number of positions | 4+PE |
| Insertion/withdrawal cycles | ≥ 50 |
| Size | VC3 |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 6 |
| Conductor cross section | 0.5 mm² ... 16 mm² |
| Connection cross section AWG | 20 ... 5 |
| Stripping length of the individual wire | 12 mm |
Material data
| Housing material | PA |
|---|---|
| Contact material | CuZn |
| Contact surface material | hard-silver plated |
| Contact carrier material | PA |
Electrical characteristics
| Rated voltage (III/3) | 690 V |
|---|---|
| Rated surge voltage | 6 kV |
| 6 kV | |
| Rated current | 70 A |
| 70 A |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
