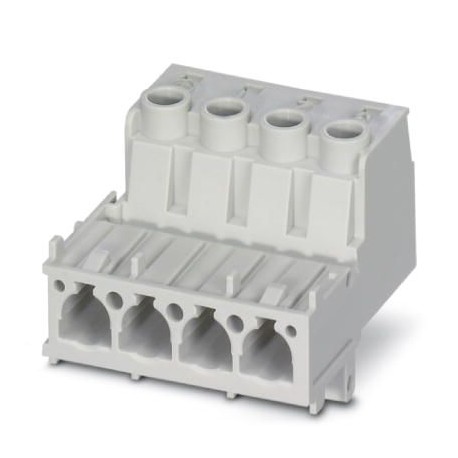

PHOENIX CONTACT VC-AMS 4 VC-AMS 4 1607745 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-AMS 4 1607745 PHOENIX CONTACT Contact insert

VC-AMS 4

1607745

PHOENIX CONTACT

5 Pcs.

Contact insert Contact insert, Article family: VARIOCON, construction: VC2, housing material: PA 6.6, color: light gray, number of poles: 4, min. conductor section: 0.5 mm², max. conductor section: 16 mm², nominal voltage: 690, assigned current: 70 A, Connection type: Screw connection, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.

Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1607745
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 25 (C-2-2013)
GTIN4017918969196
Weight per Piece (excluding packing)51.370 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteConnectors may only be connected/disconnected when under no load.
Connection technologyScrew connection
Connection methodScrew connection
Tightening torque1.2 Nm ... 1.8 Nm
Degree of pollution3
Number of positions3+PE
No. of power contacts4
Insertion/withdrawal cycles≥ 50
SizeVC2
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Conductor cross section0.5 mm² ... 16 mm²
Connection cross section AWG20 ... 5
Stripping length of the individual wire12 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C

Material data

Housing materialPA 6.6
Contact materialCuZn
Contact surface materialhard-silver plated
Contact carrier materialPA

Electrical characteristics

Rated voltage (III/3)690 V
Rated surge voltage6 kV
6 kV
Rated current70 A
70 A

Standards and Regulations

Halogen-freeyes
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1607745 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 4
