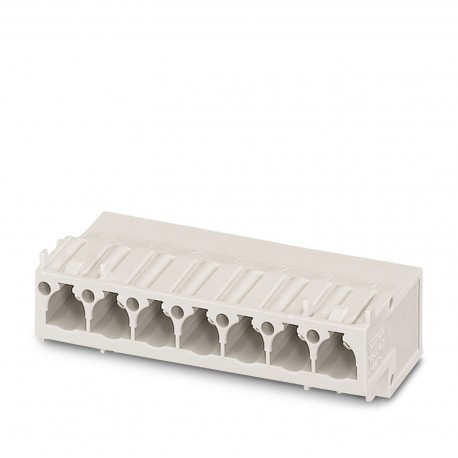

PHOENIX CONTACT VC-AML 7 VC-AML 7 1607537 PHOENIX CONTACT Contact insert View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VC-AML 7 1607537 PHOENIX CONTACT Contact insert

VC-AML 7

1607537

PHOENIX CONTACT

5 Pcs.

Contact insert Contact insert, Family of items: VARIOCON, construction: VC4, housing material: PA, color: light gray, number of poles: 7, rated voltage: 690, assigned current: 63 A, Connection type: Connection for printed circuit boards, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state. Contact insert, Range of articles: VARIOCON, design: VC4, housing material: PA, color: light grey, number of positions: 7, rated voltage: 690, rated current: 63 A, Connection method: PCB connection, Contact connection type: Pin, Connectors may only be connected/disconnected when under no load.

Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1607537
Packing unit5 pc
Minimum order quantity5 pc
NoteMade to Order (non-returnable)
Catalog pagePage 26 (C-2-2013)
GTIN4017918969189
Weight per Piece (excluding packing)44.700 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteConnectors may only be connected/disconnected when under no load.
Connection technologySolder connection
Connection methodSolder connection
Degree of pollution3
Number of positions6+PE
Insertion/withdrawal cycles≥ 50
SizeVC4

Ambient conditions

Ambient temperature (operation)-40 °C ... 100 °C

Material data

Housing materialPA
Contact materialCuZn
Contact surface materialhard-silver plated
Contact carrier materialPA

Electrical characteristics

Rated voltage (III/3)690 V
Nominal voltage UN690 V
Rated surge voltage6 kV
6 kV
Rated current63 A
70 A

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1607537 Connectors (EC003557)
Feature Name Feature Value
Number of poles (EF001391) 7
