View larger
Images are for illustrative purposes only. Please refer to data sheet for details

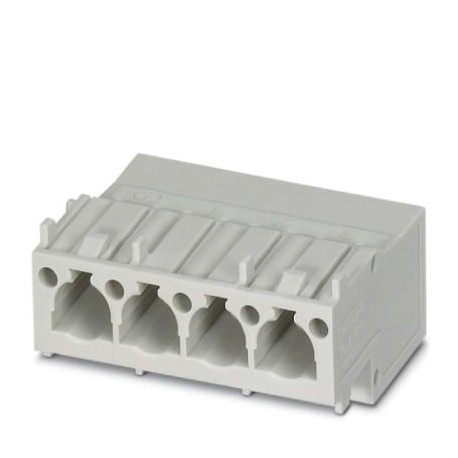

VC-AML 4 1607509 PHOENIX CONTACT Contact insert
VC-AML 4
1607509
PHOENIX CONTACT
10 Pcs.
Contact insert
Contact insert, Article family: VARIOCON, construction: VC2, housing material: PA, color: light gray, number of poles: 4, nominal voltage: 690, assigned current: 63 A, Connection type: Connection for printed circuit boards, Contact connection type: Male. Plug-in connectors should be operated only in an inert (unloaded) state.
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1607509 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 26 (C-2-2013) |
| GTIN | 4017918943585 |
| Weight per Piece (excluding packing) | 26.240 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Note | Connectors may only be connected/disconnected when under no load. |
|---|---|
| Connection technology | Solder connection |
| Connection method | Solder connection |
| Degree of pollution | 3 |
| Number of positions | 3+PE |
| Insertion/withdrawal cycles | ≥ 50 |
| Size | VC2 |
Material data
| Housing material | PA |
|---|---|
| Contact material | CuZn |
| Contact surface material | hard-silver plated |
| Contact carrier material | PA |
Electrical characteristics
| Rated voltage (III/3) | 690 V |
|---|---|
| Nominal voltage UN | 690 V |
| Rated surge voltage | 6 kV |
| 6 kV | |
| Rated current | 63 A |
| 70 A |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
