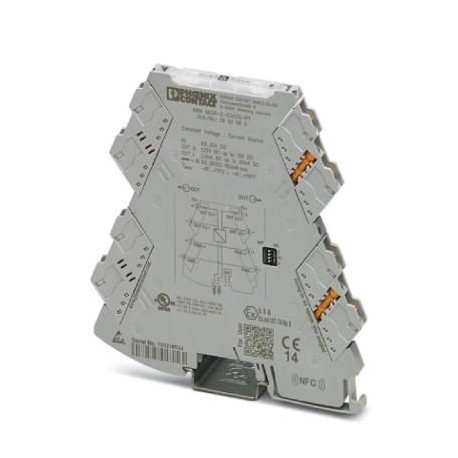

PHOENIX CONTACT MINI MCR-2-CVCS-PT MINI MCR-2-CVCS-PT 2902065 PHOENIX CONTACT Constant voltage source View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MINI MCR-2-CVCS-PT 2902065 PHOENIX CONTACT Constant voltage source

MINI MCR-2-CVCS-PT

2902065

PHOENIX CONTACT

1 Pcs.

Constant voltage source Constant voltage/current supply with plug-in connection technology, input voltage 9.6 V DC ... 30 V DC. Adjustable output voltage 1.25 V DC ... 10 V DC or adjustable output current 2.5 mA... 20 mA. 20mA and instellbar. Configurable via DIP switch. Push-in connection technology.

Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2902065
Packing unit1 pc
Catalog pagePage 100 (C-5-2017)
GTIN4046356649926
Weight per Piece (excluding packing)99.000 g
Custom tariff number85437090
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height110.5 mm
Depth120.5 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Input data

Voltage input signal9.6 V DC ... 30 V DC
Transmitter supply voltage10 V

Output data

Configurable/programmableYes
Max. output voltage10 V DC
8.75 V DC
7.5 V DC
6.25 V DC
5 V DC
3.75 V DC
2.5 V DC
1.25 V DC
Max. output current20 mA
17.5 mA
15 mA
12.5 mA
10 mA
7.5 mA
5 mA
2.5 mA
Output voltage with wire break13.5 V
Output current≤ 30 mA
Short-circuit current> 32 mA
Load/output load current output≤ 600 Ω (20 mA)
Ripple< 20 mVPP(at 600 Ω)

Power supply

Supply voltage range9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
Typical current consumption< 42 mA (24 V DC)
< 85 mA (12 V DC)
Power consumption< 1.1 W (9.6 V DC)

Connection data

Connection methodPush-in connection
Single conductor/terminal point, solid, with ferrule, min.0.14 mm²
Single conductor/terminal point, solid, with ferrule, max.2.5 mm²
Single conductor/terminal point, solid, without ferrule, min.0.14 mm²
Single conductor/terminal point, solid, without ferrule, max.2.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible12
Stripping length10 mm

General

Maximum transmission error≤ 0.1 % (of final value)
Maximum temperature coefficient< 0.01 %/K
Electrical isolationReinforced insulation in accordance with IEC 61010-1
Overvoltage categoryII
Degree of pollution2
Rated insulation voltage300 V (effective)
Test voltage, input/output/supply3 kV (50 Hz, 1 min.)
Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Colorgray
Housing materialPBT
Mounting positionany
Assembly instructionsThe T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715.
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
Electrical isolationReinforced insulation in accordance with IEC 61010-1
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC T4 Gc X
UL, USA/CanadaUL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6
DNV GL-TemperatureB
DNV GL-HumidityB
DNV GL-VibrationA
DNV GL-EMCA
DNV GL-EnclosureRequired protection according to the Rules shall be provided upon installation on board
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2902065 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
