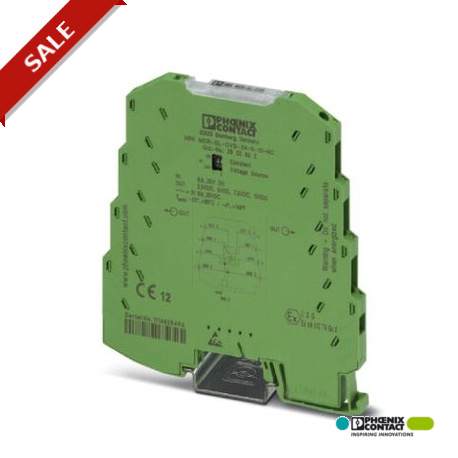

MINI MCR-SL-CVS-24-5-10-NC 2902822 PHOENIX CONTACT Constant voltage source, input voltage 9.6 30 V DC, outpu..
MINI MCR-SL-CVS-24-5-10-NC
2902822
PHOENIX CONTACT
1 Pcs.
Constant voltage source, input voltage 9.6 - 30 V DC, output voltage 10 V, 7.5 V, 5 V, 2.5 V DC, electrically isolated, can be configured via DIP switches, screw connection technology, standard configuration
Constant voltage source, input voltage 9.6-30V DC, output voltage 10V, 7.5V, 5V, 2.5V DC, with galvanic separation, configurable via DIP switch, screw connection technology, standard configuration
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product description
The 6.2 mm wide configurable MINI MCR-SL-CVS-24-10-5 constant voltage source is used to generate high precision constant voltages.
The input voltage can fall between 9.6 V DC and 30 V DC.
The DIP switches accessible from the side of the housing enable configuration of the 10 V DC, 5 V DC, 7.5 V DC, and 2.5 V DC output voltages.
The input voltage can be applied either via connection terminal blocks on the modules or in conjunction with the DIN rail connector.
Dimensions
| Width | 6.2 mm |
|---|---|
| Height | 93.1 mm |
| Depth | 102.5 mm |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
Input data
| Voltage input signal | 9.6 V DC ... 30 V DC |
|---|
Output data
| Configurable/programmable | Yes, preconfigured |
|---|---|
| Max. output voltage | 10 V DC |
| 7.5 V DC | |
| 5 V DC | |
| 2.5 V DC | |
| Output current | ≤ 30 mA |
| Short-circuit current | approx. 32 mA |
Power supply
| Nominal supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715)) |
| Max. current consumption | < 25 mA (10 V output with 30 mA load at 24 V DC IN) |
| < 65 mA (10 V output with 30 mA load at 9.6 V DC IN) | |
| < 50 mA (10 V voltage output with 30 mA load at 12 V DC IN) | |
| < 20 mA (10 V voltage output with 30 mA load at 30 V DC IN) | |
| Power consumption | < 600 mW (at 24 V IN) |
| < 624 mW (at 9.6 V IN) | |
| < 564 mW (At 12 V IN) | |
| < 540 mW (at 30 V IN) |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Stripping length | 12 mm |
| Screw thread | M3 |
General
| Maximum transmission error | ≤ 0.1 % (of final value) |
|---|---|
| ≤ 0.5 % (Without adjustment) | |
| Maximum temperature coefficient | < 0.01 %/K |
| Temperature coefficient, typical | < 0.002 %/K |
| Setting range comparison | ± 300 mV |
| Electrical isolation | Basic insulation according to EN 61010 |
| Overvoltage category | II |
| Pollution degree | 2 |
| Rated insulation voltage | 50 V AC/DC |
| Test voltage input/output | 1.5 kV (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| Color | green |
| Housing material | PBT |
| Mounting position | any |
| Assembly instructions | The T connector can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715. |
| Conformance | CE-compliant |
| ATEX | Ex II 3 G Ex nA IIC T4 Gc X |
| UL, USA / Canada | UL 508 Listed |
| Class I, Div. 2, Groups A, B, C, D T6 | |
| Class I, Zone 2, Group IIC | |
| Certificate of classification | DNV GL 14085-15HH |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
